MTI  |  SKU: UBSC-LD50

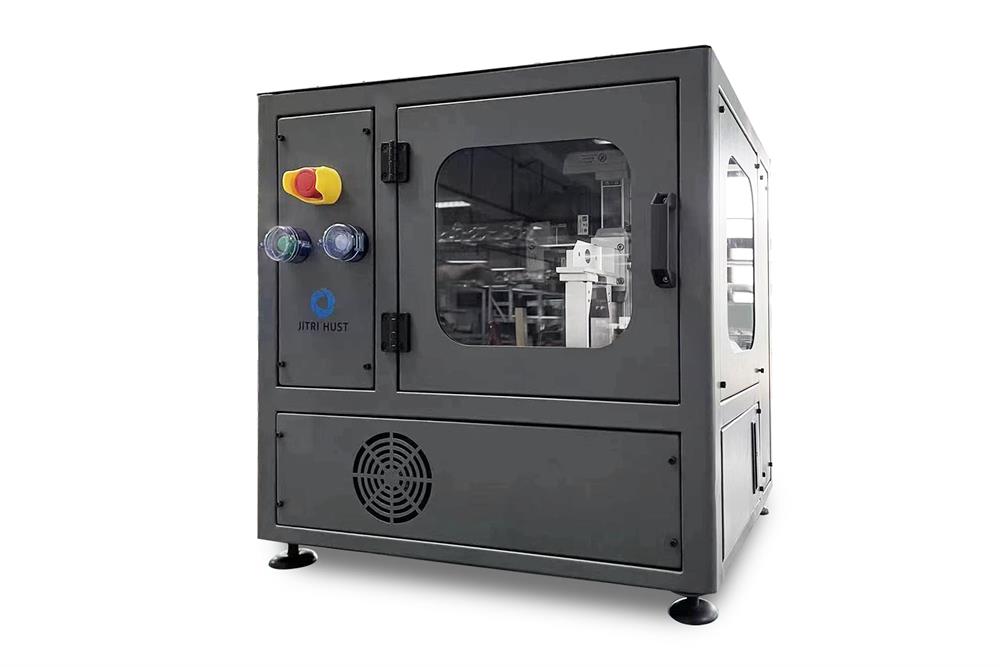

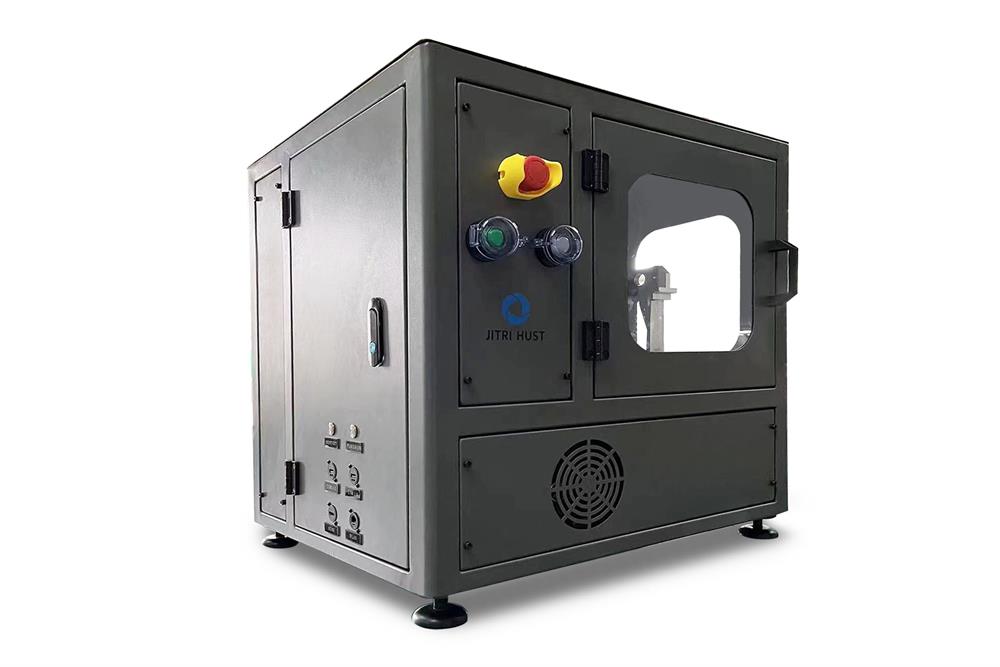

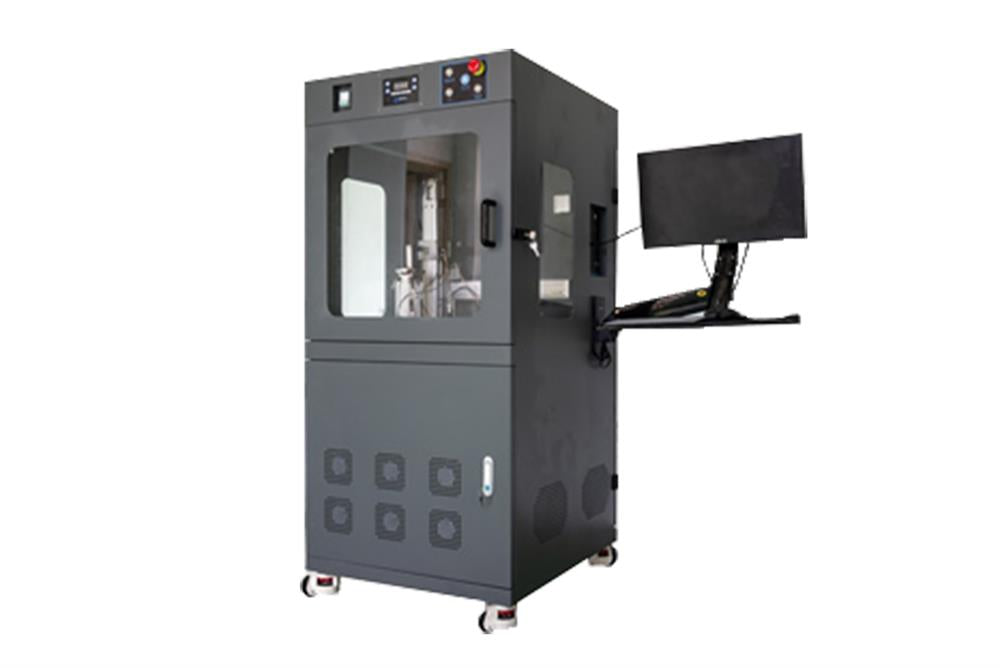

Ultrasonic Scanning System for Non-destructive Testing of Pouch/Prismatic Cells - UBSC-LD50

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Ultrasonic Scanning System for Non-destructive Testing of Pouch/Prismatic Cells - UBSC-LD50

MTI

The ultrasonic scanning system UBSC-LD50 is designed for NDT(Non-destructive Testing) of pouch/prismatic cell including:
SPECIFICATIONS
Features
  • Bubble detection in the pouch/prismatic cells
  • Electrolyte distribution during the vacuum standing
  • Pouch/Prismatic cell leak detection
  • Lithium plating detection
  • Lithium-ion distribution Analysis
  • Cycle life prediction
Voltage & Power
  • AC 208 - 240V, Three phase, 50/60Hz
  • 13.5 kW
Applicable Cell-type
  • Pouch cells
  • Prismatic cells
  • Pouch cell fixture
Coupling Medium
  • Liquid
  • Silicone Oil recommended
Scanning
  • Ultrasonic C Scanning
  • Transmission + Reflection
  • Maximum Scanning Area: 600 mm L x 300 mm W
  • Maximum Scanning Thickness: 70 mm
  • Resolution: 0.5 mm - 30 mm; it depends on the cell thickness
  • Scanning speed: ~ 1 - 10 minutes per cell; depends on the cell size
Testing Working Temperature
  • RT - 80 °C± 0.5 °C
Ultrasonic Transducers
  • Power < 100 mW
  • 2 pairs of transducer and transmittor: 2.0 MHz and 250 kHz
Scanning Stage
  • XY Axis translational stage
  • Ultrasonic Power Source
  • Signal Sampling System
  • Battery Analyzer
  • Temperature Controlled Oil Bath Tank
  • Thermometer for calibration
Software

  • XY Axis Motion Control; XY Travel Pattern
  • Ultrasonic parameters setting
  • Transmission and Reflection Waves Displaying
  • Scanning Image
Compliance
  • CE Certified
Warranty
  • One year limited warranty with lifetime support
Weight & Dimension
  • Weight: 900 lbs
  • Dimension: 1,500 mm Length x 1,000 mm Width x 2,150 mm Height
Shipping Weight & Dimension
  • Total 3 Pallets
  • 2100 lbs, 65"x46"x97"
  • 470 lbs, 48"x40"x50"
  • 315 lbs, 40"x27"x23"
Operation Manual & Video
Application Notes
  • This ultrasonic device is safe due to the low ultrasonic power (<100 mW)
