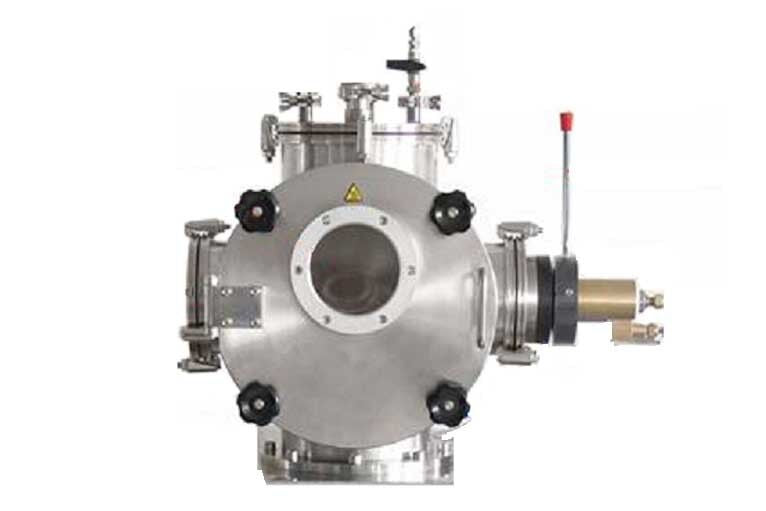

Vacuum Chamber (315 ID x 310L, mm ) with Rocker Arm for DIY Induction Melting / Casting - HVC-Cast

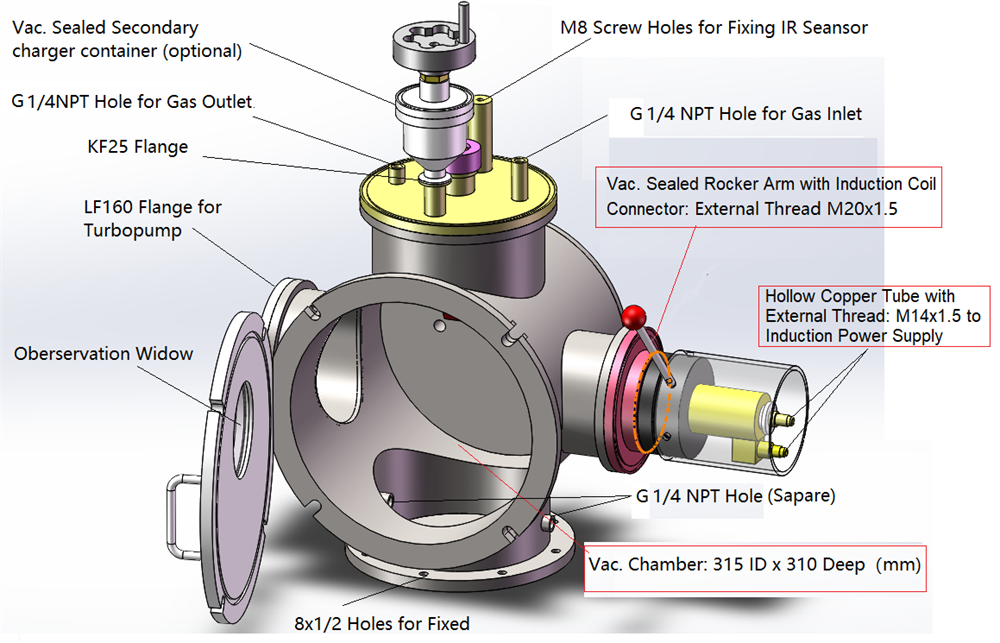

• The vacuum chamber is made of 304 stainless steel with reinforcing rib
• Inside vacuum chamber size:  315 mm ID × 310 mm Depth  ( ~ 12" Dia x 12" L)
• A vacuum-sealed 120 mm diameter glass window is installed on the front door for easy observation
• Silicone O-ring can be used for all vacuum seals.
• Temperature range: -15 to 150°C

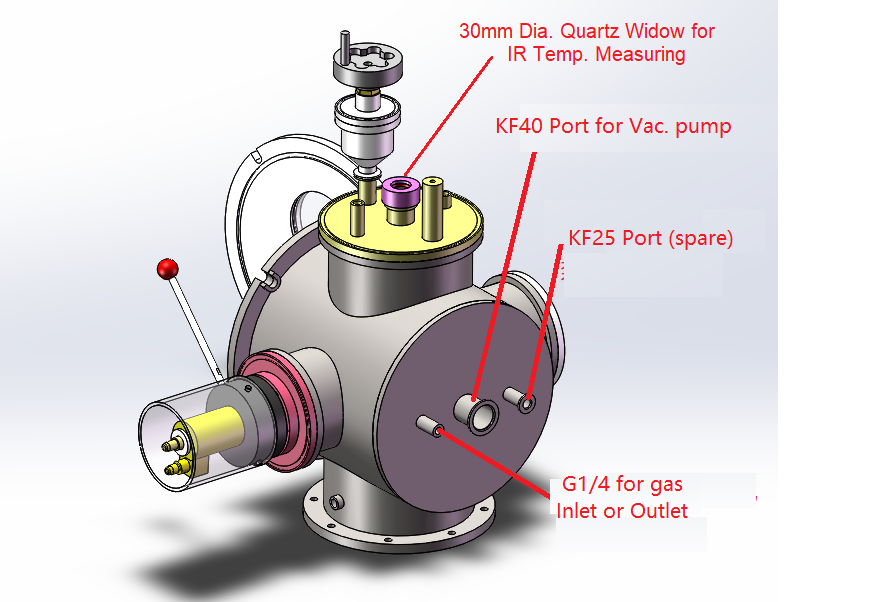

• KF 25 vacuum port is built in the back to connect a mechanical vacuum pump
• The 1/4NPT ports are built-in for connecting to vacuum gauge, gas inlet, and gas outlet valves.
• LF160 port is built in the left of the chamber  for connecting to a turbopump directly

• The vacuum-sealed rocker arm is built on the right side of the chamber.
• Two hollow copper tubes with external thread are  feedthrough the rocking flange
• Thread for connecting induction power supply: M14 x 1.5
• • Thread for connecting induction coil: M20 x1.5
• An induction coil is available upon request at the extra cost ( Standard coil: 90 Dia x 80 H, mm)

• Optional secondary material-adding port (KF25) to connect a manual screw feeding tank (Pic 1 -3) at an extra cost, which can feed 3 types of the dopants into crucible during melting
• The mechanical stirring function is optional (Pic. 4)
• Pic. 1 Pic. 2Pic. 3      Pic. 4

• 4E-2 torr by the mechanical pump (click here to order mechanical pump)
• 4E-5 torr by turbopump (click here to order turbopump) Note: Vacuum pump is sold separately.

Optional

• Please click Pic. 1 to choose vacuum valves
• Please click Pic. 2  to choose a vacuum gauge at extra cost
• Please click Pic. 4 &5  to choose a vacuum pump station, which the vacuum chamber can be put on its top

Pic. 1   Pic.2       Pic.3.   Pic. 4

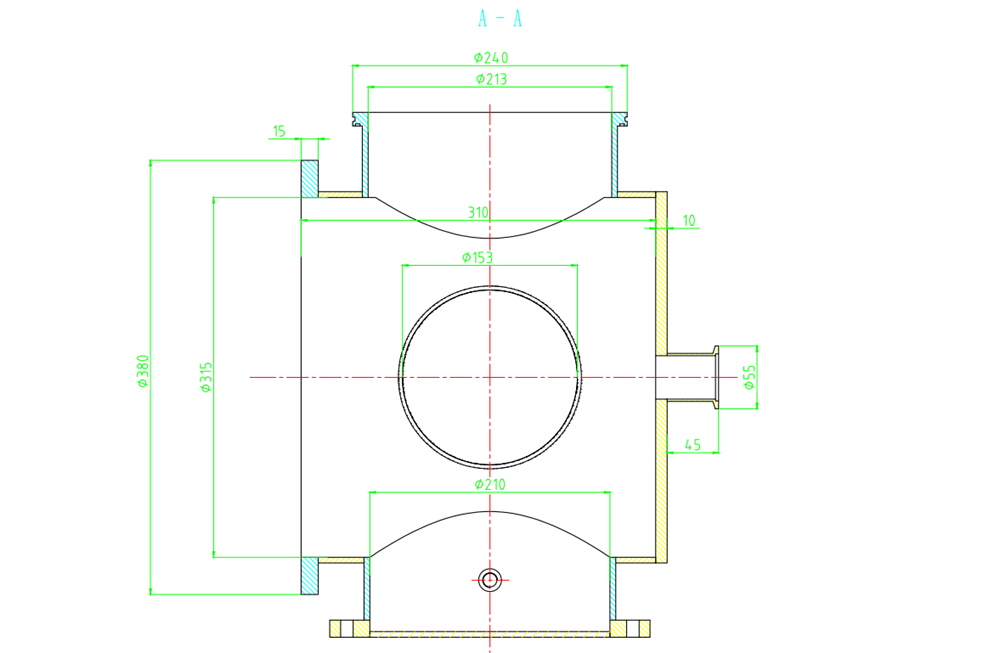

Dimension

Demo Video

Warranty

• One year limited warranty
