Vacuum Sealing Flange with Seven 1/4" Feedthroughs for 100mm O.D. Tube - EQ-FL100-7FTR

This is a single-side flange for a 100mm O.D. tube with seven 1/4" tube fittings. It provides multiple feedthroughs for various gasses delivery and thermocouple insert.

Specifications:

Features	SS304 Stainless steel flange with double high-temperature silicon O-rings Hex screw tube sealing with no welding or gluing needed. Ideal for any type of tubing: ceramic, glass, quartz, and steel pipes. Multiple feed-throughs for various gasses delivery and thermocouple insert.
Structure	Flange for 100mm O.D. tube Seven 1/4" feedthrough with ferrule tube fitting (The following pictures show an 80mm version, which has six feedthroughs)

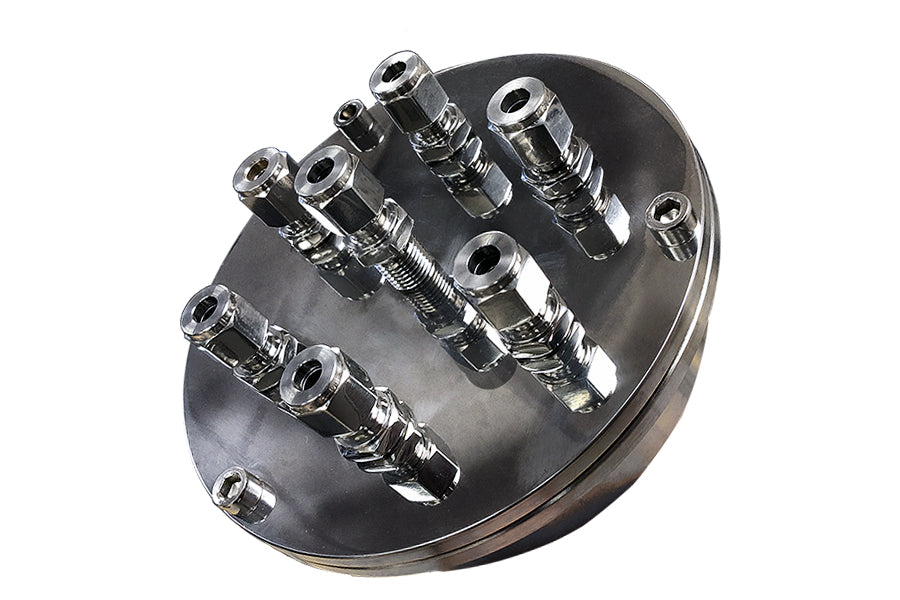

Feedthrough Configurations	Please select the configuration from the options bar. 6 feedthroughs in the outside circle, 1 in the center. (Pic. 1) All 7 feedthroughs in the outside circle. (Pic. 2)
Optional	You may order a right-side single flange by clicking the picture below
Vacuum Level	10-4 torr (molecular pump) and 10-2 torr (mechanical pump)
Dimension	Flange dimension illustration
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting. Please consider purchasing our ceramic tube block. Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products	Flange for Tube from 1" to 11"                     Vacuum Pump & High Vacuum Station
