Water Cold Sealing Flange with Valves & Vacuum Gauge for 100mm dia.Tube - EQ-FG-100WC

€148.553,00
Left, right or both

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Water Cold Sealing Flange with Valves & Vacuum Gauge for 100mm dia.Tube - EQ-FG-100WC

MTI

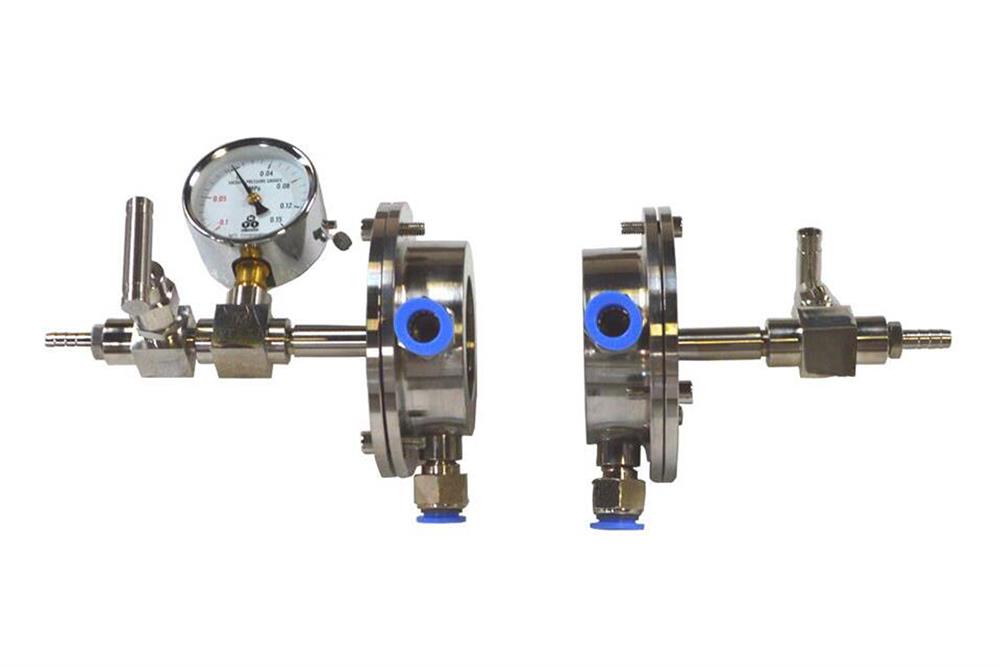

This is a pair of sealing flange with the water cooling jacket valve for OD 100- 102 mm ( 4" ) diameter processing tube. If you cannot use a ceramic block in two ends of the tube, you must use the water cooling jacket to keep the flange cool (otherwise silicone o-ring may get damaged)

SPECIFICATIONS


Features
  • Made of Stainless Steel with double high-temperature silicon O-rings on the flange.
  • Stainless steel needle valve with 1/4" pipe adapter.
  • The assembly kit will seal both ends of a 100-102 mm diameter ceramic and quartz tube.
  • A vacuum gauge is installed on one side of the flange.
  • Max. The furnace working temperature is 1150°C without thermal block if the tube furnace is installed with this water cold flange.
  • You  may choose the left side, the right side, and the full set of the flange at the product option bar
  • Please always use a recirculating water chiller ( see related product below ) to save water.
Vacuum  level

Options


Installation Video

Dimension


Warning
  • Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melt silicone O-ring. You may order a ceramic block in related products.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
  •
