MTI  |  SKU: ZeroSO303025S2cavity20D

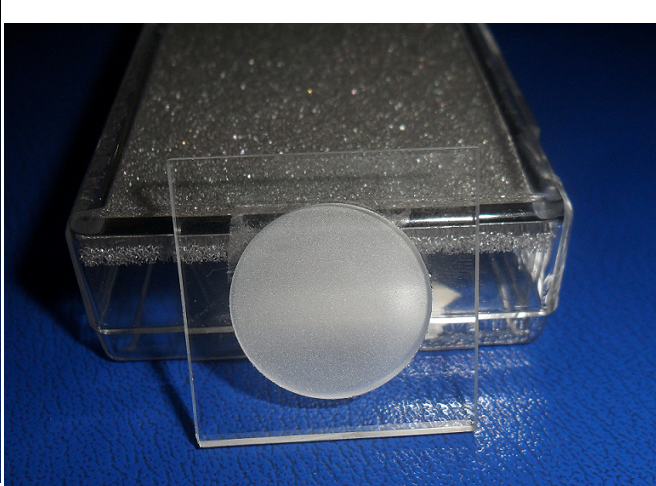

Zero Diffraction Plate for XRD sample: 30 x 30 x 2.5 mm with Cavity 20 ID x 1.0 mm, 2sp, SiO2 Crystal - ZeroSO303025S2cavity20D

€24.218,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Zero Diffraction Plate for XRD sample: 30 x 30 x 2.5 mm with Cavity 20 ID x 1.0 mm, 2sp, SiO2 Crystal - ZeroSO303025S2cavity20D

MTI

Specifications:
  • Crystal: SiO2
  • Size: 30 x 30 x 2.5mm thickness, with a round cavity in the center of the plate with 20 mm dia. and 1.0 mm depth
  • Surface: two sides optical polished
  • Zero diffraction plate is made of Silica cut at special orientation
  • Perfect for sample holder of powder XRD, which has no background noise from 20 to 100 degree (2? angle Cu Ka X-Ray)
  • Fit with XRD of Siemens, Scintag, Rugaku and many more
  • Warning:  X-ray beam shall be 5 mm dia or less and hit in the center of the sample when you use cacity zero diffraction plate ! Otherwise  the edge may result in a peak.
  • Typical XRD of SiO2 zero diffraction plate
