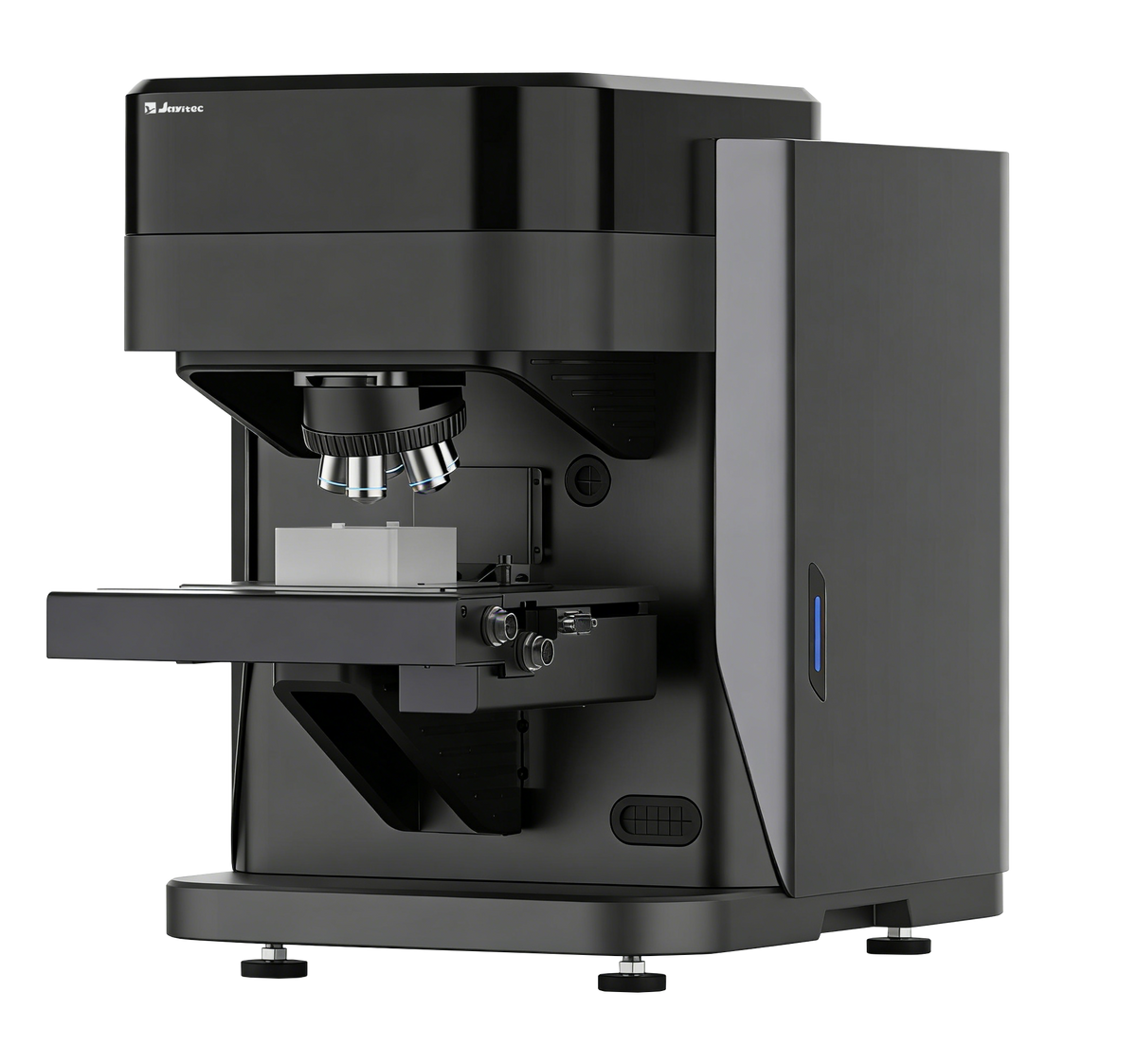

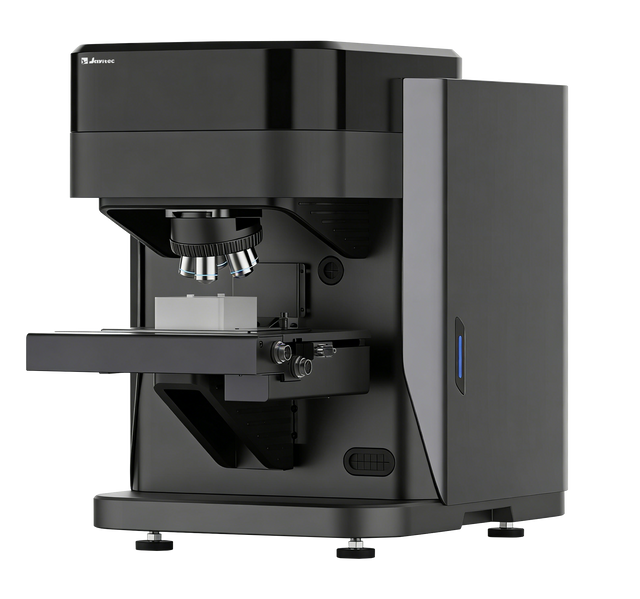

EC-Raman Integrated Raman Microscope

Traditional Raman microscopes often have a large footprint, high cost, and complex operation, which makes them difficult to use in many laboratories and non-specialized research settings. The EC-Raman high-performance Raman microscope addresses these issues with a compact, integrated design that overcomes spatial constraints. It can be easily placed in demanding environments such as glove boxes and integrates capab ilities
for in-situ electrochemical Raman measurement and intelligent particle identification. It provides an advanced yet user-friendly solution for research laboratories and high-quality teaching.

The first integrated microscope to achieve transient electrochemical Raman spectroscopy

JAYITEC was incubated by Xiamen University Jiageng Innovation Laboratory, with core technologies originating from decades of interdisciplinary research in electrochemistry and spectroscopy at the College of Chemistry and Chemical Engineering, Xiamen University. In 2015, the team pioneered Transient Electrochemical Raman technology, opening a new dimension for in-situ electrochemical interface studies. EC-Raman, the first commercialized system based on this technology, integrates 11 proprietary intellectual properties and represents a leading advancement in integrated electrochemical Raman microscopy.

Integrated Architecture - Deep Hardware-Level Integration

EC-Raman integrates three traditionally independent systems — microscopic imaging and scanning, Raman spectroscopy, and electrochemical analysis — into a single integrated platform.
With all optical paths and electronic components built into the main system, EC-Raman eliminates the conventional setup of “three separate instruments + multiple cables + multiple software platforms.” This integrated architecture fundamentally resolves common challenges in external coupling solutions, including inconsistent communication protocols, uncontrollable transmission delays, and disconnected datasets.
Equipped with a patented magnetic electrochemical cell, EC-Raman enables tool-free connection and second-level sample loading, greatly simplifying experimental setup and improving operational efficiency.

Transient Electrochemical Raman Technology: From Static Observation to Dynamic Reaction Tracking

Electrochemical interfaces often involve short-lived intermediates whose formation and transformation occur on millisecond or even microsecond timescales. However, conventional electrochemical Raman approaches typically rely on a “potential stabilization followed by spectral acquisition” workflow, providing only averaged information under steady-state or near-equilibrium conditions. This is similar to capturing a static photograph of a reaction, where critical transient processes remain hidden.
In 2015, the team’s chief scientist pioneered Transient Electrochemical Raman technology and introduced this methodology in the Journal of the American Chemical Society (JACS), overcoming the limitations of conventional steady-state measurements.
By synchronizing Raman acquisition with continuous potential scanning or rapid potential steps, this technology enables real-time tracking of molecular species evolution at electrode interfaces. It directly reveals the formation, transformation, and disappearance of reaction intermediates, providing time-resolved molecular-level insights for studies of electrocatalysis, battery interfaces, corrosion mechanisms, and beyond.
If conventional electrochemical Raman is like taking a photograph, Transient Electrochemical Raman is like recording a video — capturing not only where a reaction starts and ends, but also how it actually happens.

Implementation Approach: Sub-100 ns Hardware Synchronization Between Electrochemical and Raman Signals

Transient Electrochemical Raman demands precise time-domain synchronization between electrochemical excitation and Raman acquisition.
Hardware Trigger Synchronization
The system’s main control unit simultaneously coordinates the electrochemical module and Raman spectrometer. When the electrochemical excitation signal changes, the control system immediately sends a hardware trigger to initiate Raman acquisition, achieving a synchronization delay ≤ 100 ns.
This near-zero-delay synchronization provides a reliable temporal foundation for capturing millisecond-scale transient Raman responses, enabling accurate observation of dynamic electrochemical processes.

1)Raman Spectroscopy Module:

Integrated laser source options: 532 nm / 633 nm / 785 nm Spectral resolution: <4 cm-1
Signal-to-noise ratio: 5000:1

2)Microscopic Imaging & Scanning System

Bright-field illumination combined with a high-sensitivity camera enables real-time visualization of electrode surface morphology.A high-precision 3D motorized stage supports Raman mapping, automated particle localization, and high-throughput analysis.

3)Electrochemical Analysis Module

Fully integrated within the main system.Supports multiple electrochemical techniques, including CA, CV, and PS.Voltage range: ±10 V,Current range: ≥ ±250 mA

4)Magnetic Electrochemical Cell

Patented design (Patent No. CN202422699655.4).Integrates the three-electrode configuration within the cell body and directly interfaces with the sample stage through a magnetic coupling structure.Automatic electrical connection through contact points eliminates manual wiring, soldering, or electrode clamping.Reduces cable-induced mechanical stress and minimizes interference with micro-area sample positioning.A quartz sealing window isolates the reaction environment, improving stability for in-situ measurements.Customizable cell configurations support different electrode systems and application scenarios.

5)Compact Design

System dimensions: 33 × 62 × 48 cm.Easy integration into
space-limited in-situ environments, including glove boxes.

Key Feature

Ultra-High Precision Motorized Stage

Three Flexible Stage Options Designed to meet diverse requirements from routine imaging to precise micro-area positioning.Available in domestic open-loop, imported open-loop, and imported closed-loop configurations, delivering up to ±1 μm positioning accuracy and <1 μm Raman imaging resolution.

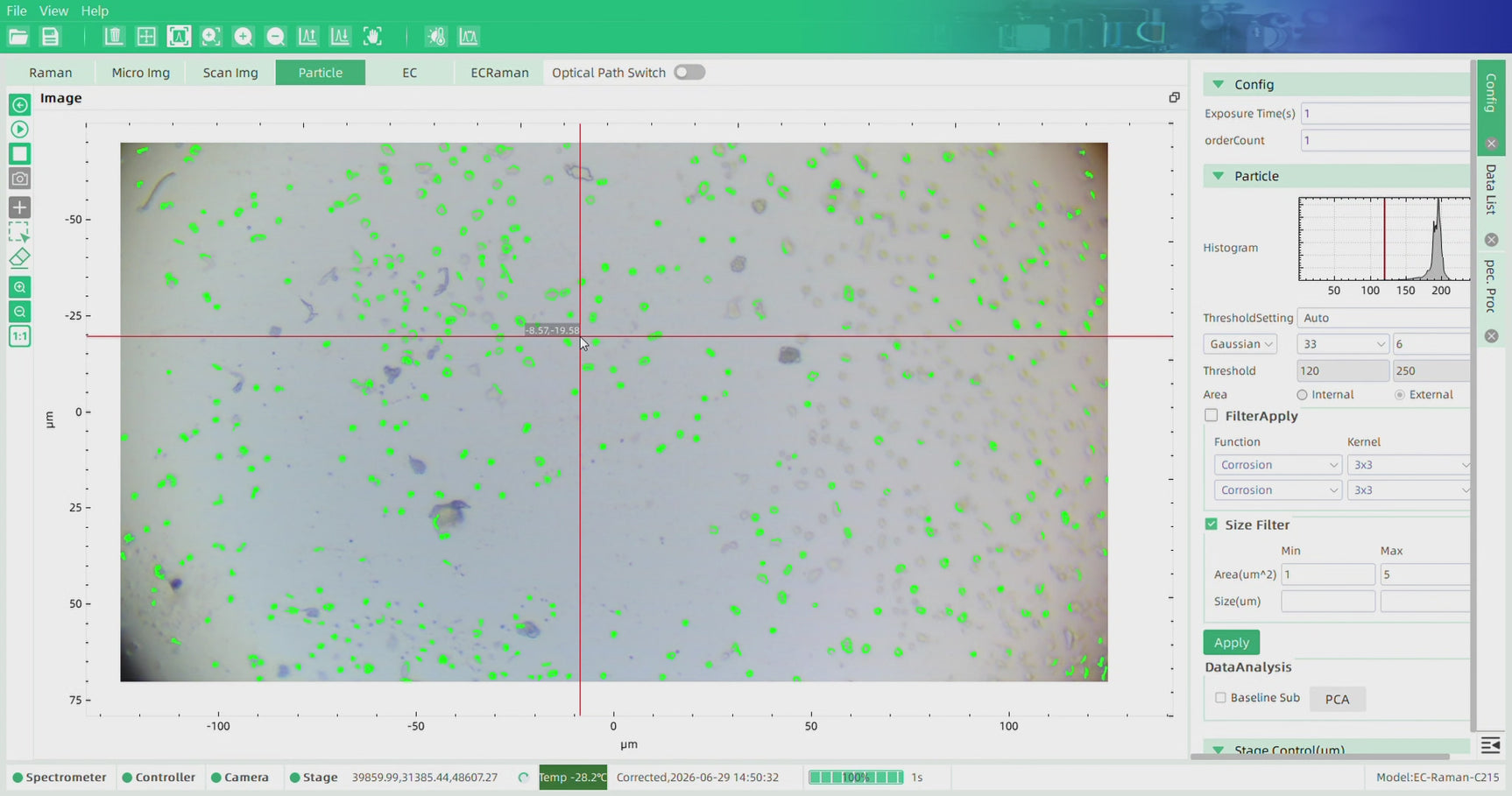

Intelligent Particle Analysis Module

Positioning accuracy down to <2 μm
Automatically identifies micron-scale particles and drives the high-precision stage to position each target particle at the laser focus for Raman acquisition.

High-Precision Electrochemical Module

Enabling Reliable Data Acquisition for Transient Raman Analysis
Wide potential range and high current output support diverse electrochemical systems. Real-time synchronization between electrochemical control and Raman acquisition, enabled by sub-100 ns hardware triggering, ensures each spectrum precisely reflects the corresponding electrochemical state.

Technical specifications
