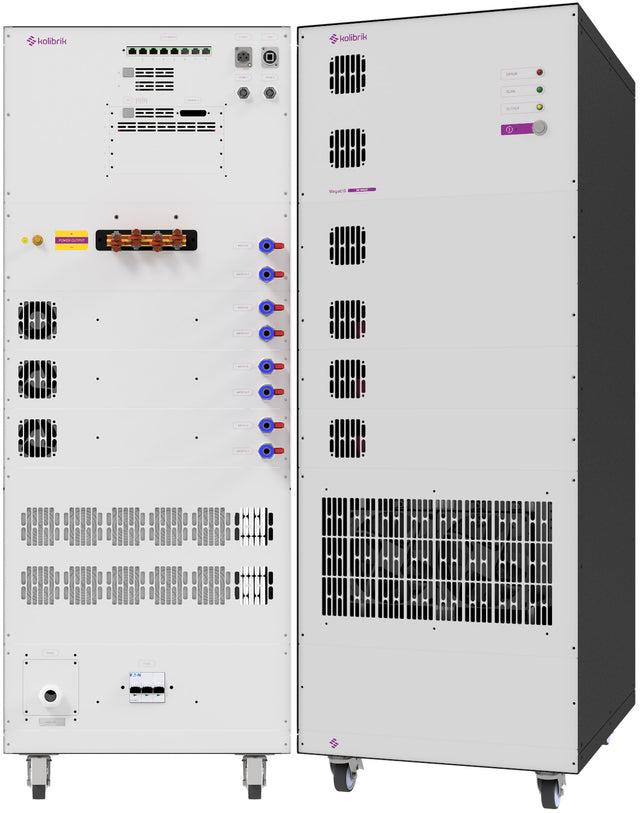

MegaEIS™ ME-10S500x20

Kolibrik

The MegaEIS™ ME-10S500x20 is the ideal workstation with an internal power source from the Kolibrik MegaEIS Product Family, purpose-built for electrolyzer stack research.

With 10 fully synchronized measuring channels, it’s ideal for parallel testing of small to mid-size stacks — capturing real-time insights into cell uniformity, degradation mechanisms, and efficiency under industrial-scale loads. Delivering up to 500 A, the ME-10S500x20 makes even the most demanding electrolyzer experiments feel effortless.

Key Features

  • Designed for electrolyzer stack research
  • Stack current up to 500 A
  • Stack voltage up to 20 V
  • Inner dissipated power of MegaEIS up to 10 kW
  • EIS measurement one cell gradually or all cells simultaneously
  • High precision current sensing of both DC and AC components

Deployment Scenarios

  • Industrial Short Stack Validation: Test large-format cells under true operational conditions. With up to 500 A from the integrated power source, you can validate cell-to-cell uniformity across 10 channels simultaneously, ensuring balanced voltage distribution in components with industrial-scale active areas.

  • High-Current Density Stress Testing: Push your stack to its thermal and electrochemical limits. True parallel EIS captures real-time degradation data—such as mass transport limitations or localized hot spots—while continuously driving the stack at 500 A without requiring external boosters.

  • High-Power Dynamic Load Profiling: Simulate aggressive renewable energy fluctuations natively. Execute automated, high-current load cycling sequences to observe transient responses and optimize thermal management strategies for heavy-duty electrolyzer designs.

Technical Parameters

Power supply 110 … 240 V AC / 50 … 60 Hz
Dimensions Modular deign for 19“ rack cabinet
Protection rating IP20
Input voltage 0 … 20 V
Total input current
Total input current (internal + external load)		 Up to 500 A
Internal load current
 0 … 500 A
Max. internal power dissipation 10 kW
Cooling Water
Sampling 24-bit ADCs, low-noise 50/60 Hz filtered sampling
Up to 1.25 Msps for EIS measurements
Measurement resolution 0.001% of selected range
Accuracy Voltage: ≤ 0.1% of range + 0.1% of reading
Current: ≤ 0.1% of range + 0.5% of reading
Acquitions methods Constant V, I, Open circuit, Manual control, Chronoamperometry, Chronopotentiometry, Linear sweeps, Polarization curves, Current interruption, Load cycling/profiling, EIS – electrochemical impedance spectroscopy, Programmable sequences of all available methods
EIS frequency 1 mHz ... 100 kHz
EIS amplitude Up to 20% of maximum internal current for < 1 kHz
2× voltage probe with EIS Up to ± 20 V
EIS channel voltage range ± 5 V (max. voltage span over one EVM8 module: 24 V / each 8 channels)
Number of EIS channels Up to 8+2 (limited by max. voltage)
8 channels per one EVM8 module
Connection USB 2.0, Ethernet
Software Control software for MS Windows
Features: measurement setup and control, data acquisition, processing and visualization, pascal or python scripting, remote control by TCP/IP server for integration with top-level control system, examples for remote control using Python or LabVIEW.

If these variants do not suit you, please contact us, we offer customized solutions!
