Electrochemical-H-Cell

Fully Equipped H-Cell Kits

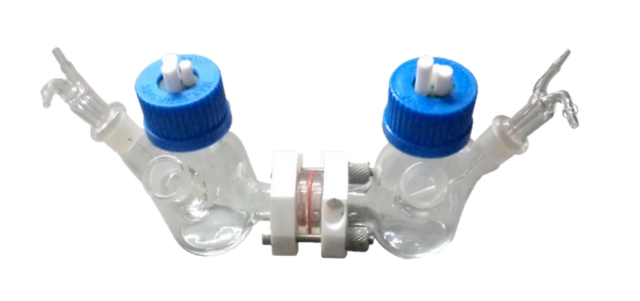

The IP-HC(5-1000) are a fully equipped, horizontally mounted and a dual compartment electrochemical H-Cell set-up for a wide variety of studies that require a separate compartment for counter and / or reference electrodes. The construction is gas-tight having two separate chambers each with 5-1000 ml volume capacity and each equipped with gas inlet and outlet option. This allows bubbling the solution and evacuating gases. Chambers can be separated with an ion-exchange membrane, so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode. A pack (Qt. 5) of Nafion N117 membrane equivalent can be provided upon request. Upon request, each chamber can be temperature controlled using a glass tube that can be placed inside each chamber. Set-up is compatible with a power source meter or a typical Potentiostat / Galvanostat.

Available Volumes: 5 mL, 10 mL, 25 mL, 50 mL, 100 mL, 250 mL, 500 mL, and 1000 mL

Customization Options: YES

Wet Parts: Glass & silicon and thus, no limitations due to pH of electrolyte.

Includes: Glass reservoirs with three-electrode set-up (2), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), Teflon support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)

Related applications:

•             Electrochemical water splitting - HER / OER or any such electrocatalysis applications

•             Redox flow battery setup

•             Electrochemical synthesis / Hydrogen Production

•             Carbon Dioxide Reduction Studies

•             Membrane research: Proton conductivity, Ionic conductivity, membrane efficiency

•             Reference electrode testing

•             ASTM grade Corrosion studies – Hydrogen Permeation

•             Fuel Cell Studies: Hydrogen peroxide fuel cell, enzymatic fuel cell research, microbial fuel cell research, etc.

H-Cell Accessories:

•             IP-GC-50H-1P: A pair (Qt. 2) of thermal control glass tube coils for temperature control in each chamber of IP-HC50 and IP-PECHC50 cells.

•             IP-HC-Lug-M-50: Lugging tube for Ref. Electrode near membrane in IP-PECHC50 or IP-HC50.

•             IP-N117-Eq: Hydrogen permeation membrane Equivalent to N117 - 5/pack for H-CELLS and PEC H-CELLS. Thickness: 183 µm, Diameter: 35mm, Density: 360 g/m2

Technical Specification Sheet

Recommended Optional Items: Reference Electrodes (Aqueous or Non-Aqueous), Working Electrode, Auxiliary (Counter) Electrodes , MF-2024: Working electrode (flat samples like ITO) holder.
