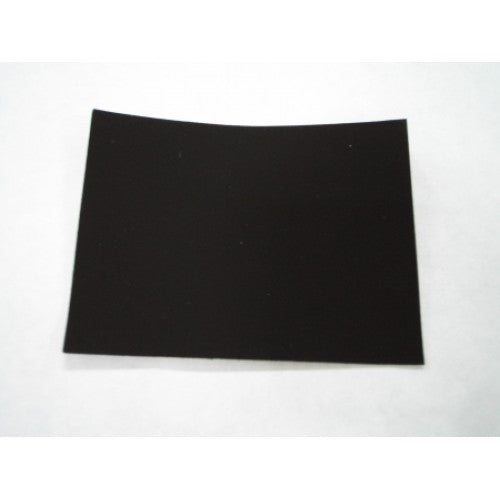

4 mg/cm² Platinum Ruthenium Black - Carbon Cloth Electrode (W1S1010)

The 4.0 mg/cm² Platinum Ruthenium on Carbon Cloth is the most popular Gas Diffusion Electrode (GDE) for use in Direct Methanol Fuel Cells (DMFC). The Platinum Ruthenium (PtRu) catalyst is designed to facilitate the Methanol reaction to create an efficient DMFC. The Gas Diffusion Layer (GDL) used is a standard carbon cloth with MPL which is 365 microns thick. Other GDL materials are also available by custom request

as are custom sizes and loadings.

Includes a Nafion Post Coat for improved water management and adhesion to the membrane.

4 mg/cm² Platinum Ruthenium Black - Carbon Cloth Electrode (W1S1009) has been discontinued and was permanently replaced by 4 mg/cm² Platinum Ruthenium Black - Carbon Cloth Electrode (W1S1010).

There is a limited quantity of this product is available.  Please contact us before you place an online order for this product.

Catalyst Properties

Catalyst Type

Platinum Ruthenium Black - Fuel Cell Grade

Loading

4.0 mg/cm²

Gas Diffusion Layer Properties

Material Type

Woven Carbon Fiber Cloth

Thickness

0.365 +/- 0.015 mm (365 +/- 15 microns)

Basic Weight (g/m²)

175 +/- 5

Air Permeability (s)

< 27

Electrical Resistivity (through plane)

< 14 mΩcm²

Microporous Layer

Yes

on catalyzed side
