Forno tubolare verticale per il collaudo di piccole celle a combustibile (cella da 20 mm, 1000°C) - OTF-1200X-S-VT-C4

OTF1200XSVTC4 is a vertical tube furnace with a separated 4-channel gas flow and precision temperature station, which is designed for testing a small fuel cell ( 20 mm diameter up to 800ºC to develop new generation fuel cell material quickly and cost-effectively.

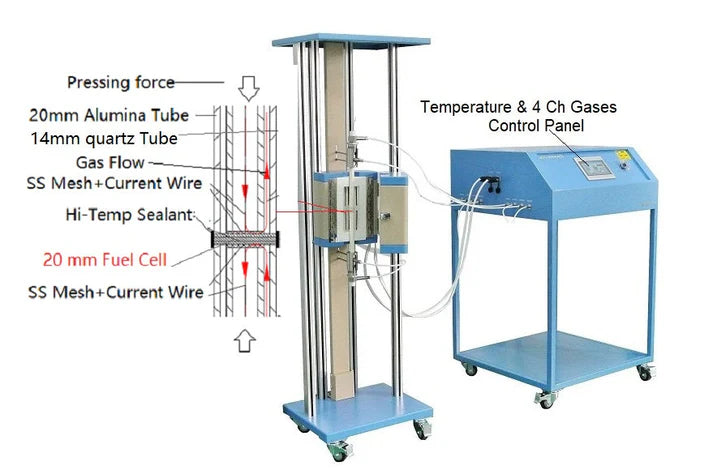

Flanges & Tubes   ( Fuel Cell Fixture)	Φ20 mm small fuel cell ( customer provided) will be placed between tubes and flanges on the top and bottom  ( Pic. left ) Two tube sets consist of a dual-layer structure (Pic. 1)  Outside tube: Alumina  20 OD X 16 ID x 260 L (mm) x 2 sets Inside tube:     Quartz:  14 OD X 10 ID x 300 L  (mm) x 2 sets Two flanges are connected to the tube sets with ports of the gas inlet and outlet and PTFE wires sealed top (Pic. 2) The tube set will be fixed on the frame of the furnace and apply pressure to a fuel cell. (Pic. 3) The included high-temperature adhesive will apply the gap between two tubes to ensure gas flow with air-tight. (Pic. 4)     Pic. 1   Pic. 2 Pi. 3 Pic. 4

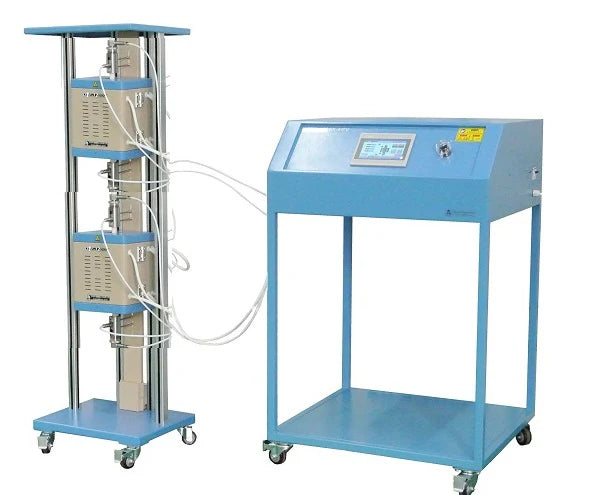

Vertical Furnace	A compact Split-able furnace with 2 heating zones is installed on a mobile frame vertically. Power: AC110V or AC220 V is available, 1.5 KW.   Working Temperature:  Continuous: 1000oC, Max. 1200°C, 1 hrs Heating Zone Length:   2x 100 mm ( 200 mm total) Constant temperature zone:  65 mm with +/- 1oC  Heating rate:  20 °C/min Temperature accuracy: +/- 1oC Two independent temperature controllers with 30-segment programmable Optional: Two furnaces on one frame are available upon request at an extra cost.
Temperature Control and Gas Delivery station	Temperature and gas delivery control is located on a separate mobile cart via a touchscreen panel Temperature control: 30 segment programmable with +/- 1oC accuracy Four-channel MFC gas flow control with an accuracy of ±1.5% F.S Two MFC 100 SCCM max Two MFC  200 SCCM Max. Working temperature; 5~45ºC  Warning: If you use flammable to test the fuel cell,  you must add an automatic burner and a gas leaking detector to ensure safety ( click the picture below to order )
Accessories	Accessories included: Two sets of flange and alumina+ quartz tubes are included with O-rings Two ss316 wires are included to connect to a metallic mesh disc (20 mm dia.) Accessories not included and provided by the customer or optional Au or Pt wire to connect the fuel cell in the center  Two metallic mess to contact to a fuel cell  ( optional for SS316 )
Dimension
Net Weight	~  125 Kg
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
