MTI  |  SKU: OTF1200XVT80

Forno verticale a tubo diviso con tubo al quarzo da 80 mm e flange sottovuoto SS - OTF-1200X-VT-80

€0,00

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

Forno verticale a tubo diviso con tubo al quarzo da 80 mm e flange sottovuoto SS - OTF-1200X-VT-80

MTI

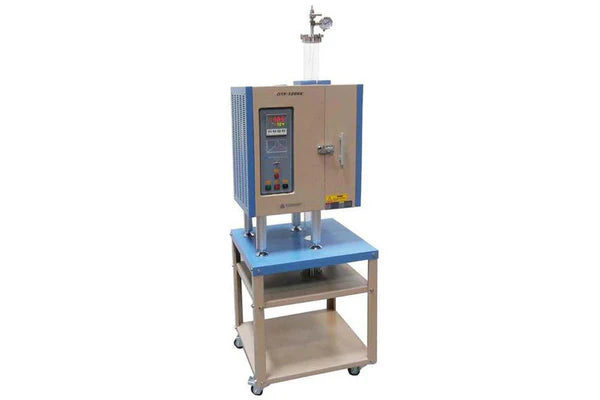

OTF-1200X-VT-80 is a split Vertical Tube Furnace with vacuum sealed 80mm diameter quartz tube, which can achieve faster sample heating and quenching in the vacuum or flowing gas. The precision temperature controller can provide 30 segments of heating and cooling steps with +/- 1°C accuracy. It is an ideal furnace for making quenching tests and temperature measurements. The vertical tube furnace is installed in a heavy-duty mobile for easy moving.

SPECIFICATIONS:


Furnace Structure
  • Double layer steel structure with air cooling to keep case temperature <65°C
  • High purity fibrous alumina insulation with the Special coating to ensure max. energy saving

Power

6KW

Voltage

AC 208-240V Single Phase, 50/60 Hz

Max. Temperature

1200°C(<1 hr)

Continuous Temperature

1100°C for each zone

Max. Heating Rate

<= 20°C/min.


Processing Tube
  • High purity quartz tube with 1200oC max. working temperature
  • Size: OD: 80 mm,x  ID. 72 mm x 1000mm Length
  • Upgrade note:( Processing tube can be replaced by mullite tube from 60 mm OD to 100 mm OD at extra cost, then furnace can be used up to 1250°C )

Heating Zone length

440mm (single zone)

Constant Temperature Zone

150mm (+/-1°C)

Temperature Accuracy

+/- 1°C

Temperature Controller


  • MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • RS485 Communication Port.
    • Advanced Temperature Control (Optional)
    • MTS01 Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at an extra cost. Click for detailed information about the MTS01 software kit.
    • You may upgrade the temperature controller to the EurothermTemperature Controller which is fully compatible with Eurotherm iTools software. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB), and a software USB. Click the pic below to view the full spec of the Eurotherm 3004 temperature controller.
Vacuum & Fitting Ports


Vacuum Level
  • 10E-2 Torr by a mechanical vacuum pump.
  • 10E-5 Torr by the molecular pump.
  •  Leak rate < 5 mTorr / min.

Heating Element

1300°C Fe-Cr-Al Alloy doped by Mo

Dimensions

550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart

600mm(L) x 600mm(W) x 1200(H) install with mobile cart

Net Weight

About 80kg (excluding mobile cart)

Shipping  size

48"(L) x 40" (W) x 72''(H)

Shipping weight

400lbs

Warranty
One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order the replacement at related products below.)

Laptop, software  (Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • Labview-Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.

Compliance
  • CE Certified
  • NRTL (UL61010)  or CSA certification is available at extra cost.


Application Notes
 ( We may help you to build a customized flange to meet your application at extra cost )
