Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces VGB-6-OTF2-VBF

€0,00

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces VGB-6-OTF2-VBF

MTI

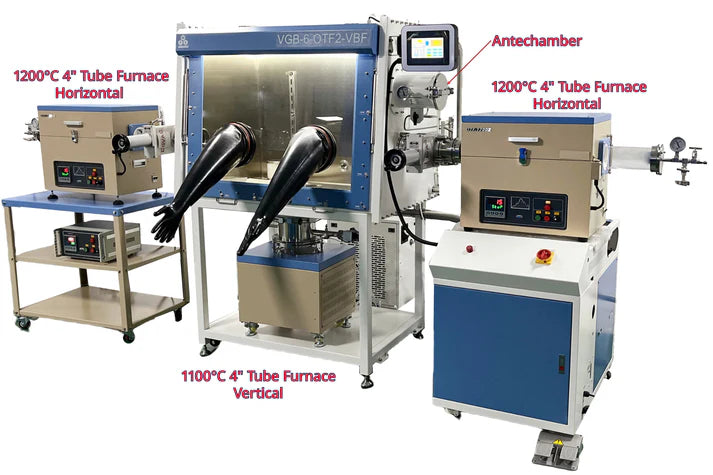

The VGB-6-OTF2-VBF system consists of three tube furnaces connected to a glovebox equipped with a water and oxygen purification system, achieving H₂O and O₂ levels below 1 PPM. Heat-treated samples can be transferred directly into the glovebox for further processing.



SPECIFICATIONS

Voltage Single-phase 208-240VAC, 50/60 Hz
Max. Power Consumption
  • Glovebox Power: 1500W
  • Total Power of High-Temperature Furnaces: 8.5KW
Furnaces

One 1200°C single-zone tube furnace on each side

  • Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C
  • Tube Dimensions: 100mm OD × 96mm ID × 1000mm L

A vertical furnace at the bottom of the glovebox

  • Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C
  • Single-end sealed Φ200 × 340mm quartz tube





Circulating Water Chiller

 Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace
Model: KJ-5300

  • Operating Voltage: AC 220V 50Hz
  • Operating Current: 0.7–8 A
  • Cooling Capacity: 6,274 Btu/h
  • Compressor Power: 600 W
  • Reservoir Capacity: 10 L
  • Maximum Flow Rate: 16 L/min
  • Net Weight: 45 kg
Weight

  ~850Kg
Certification

All electrical components (with input voltage ≤ 24V) are UL or CSA certified.
