eExtender50V
Ivium Technologies
- Adds an extra applied/measured potential range to those instruments with higher compliance voltage
Product description

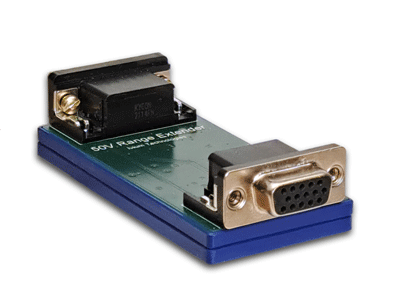

The eExtender50V module is used to add an extra applied and measured voltage range to select instruments which have a higher compliance voltage. It is a module that is directly connected between the instrument and the cell cable.
It is compatible with the Vertex.50V1A, sModule 1A/50V, Vertex.30V1A, Vertex.30V, and XP10 instruments.
For the Vertex.50V1A and sModule 1A/50V the applied/measured voltage range is increased to match the ±50V compliance voltage. For the Vertex.30V1A and Vertex.30V the voltage range is increased to match the ±30V compliance voltage. For the XP10 the voltage range is increased to match the ±40V compliance voltage.
- Maximum applied voltage: ±50V
- Applied/measured resolution: Five-times (5x) the primary potentiostat resolution
- Applied/measured accuracy: Five-times (5x) the primary potentiostat error
- Input impedance: 100GOhm
- Electrometer input current: <150pA
- Electrometer bandwidth: One-fifth (0.2x) the primary potentiostat bandwidth
- EIS frequency range: 10uHz to 50kHz (accurate without recalibration)
