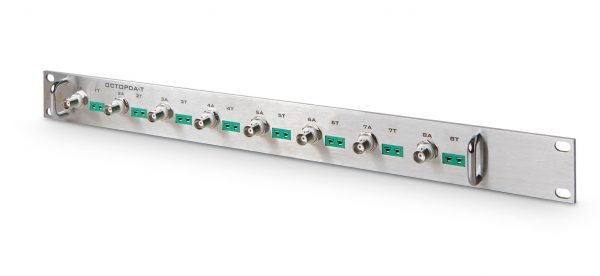

OctoPPE-T
Ivium Technologies
- Analog input/output and temperature measurement module for OctoStat
- Each channel: 1 input/output and 1 temperature measurement
Product description
The OctoPPE-T is a module, designed for use in combination with an OctoStat, that allows 2 analog input measurements for each OctoStat channel:
- input 1 is a low impedance analog input/analog output with BNC connector
- Each channel can measure from -10V to +10V
- Input resistance of 1MOhm
- The voltage signal transfers directly to Analog input 1 of the potentiostat peripheral port
- input 2 is an analog input with a direct connection for a K-type thermocouple for temperature measurements
- Suitable for K-type thermocouples
- Temperature range from -50 to 900 degrees centigrade
- Measurement accuracy:
- -25 to 400C is ±2C
- >400C is ±1.6%
- The voltage signal transfers directly to Analog input 2 of the potentiostat peripheral port
