PalmSens  |  SKU: C-ES4T-SPE.F0

EmStat4T

Prezzo normale €0,00

Connection Module for
EIS

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

EmStat4T

PalmSens

EmStat4T

Tailored electrochemistry through touch-controlled apps

  • Potential range ±3 V
  • Max. current ±30 mA
  • Supports common electrochemical techniques
  • Standalone operation with MethodSCRIPT
  • or remotely controlled by laptop or phone

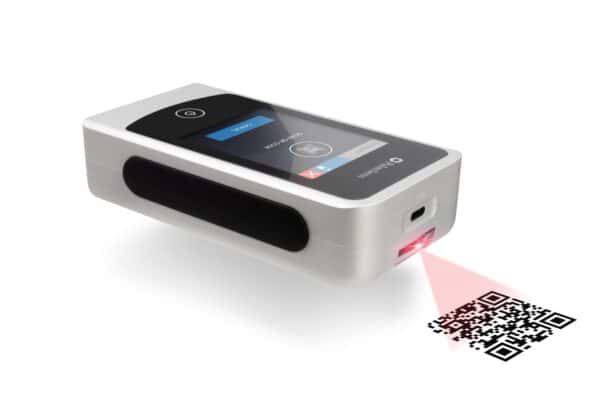

  • Bar/QR-code scanner

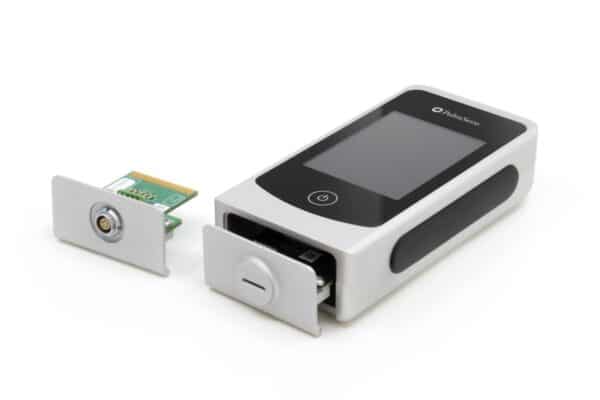

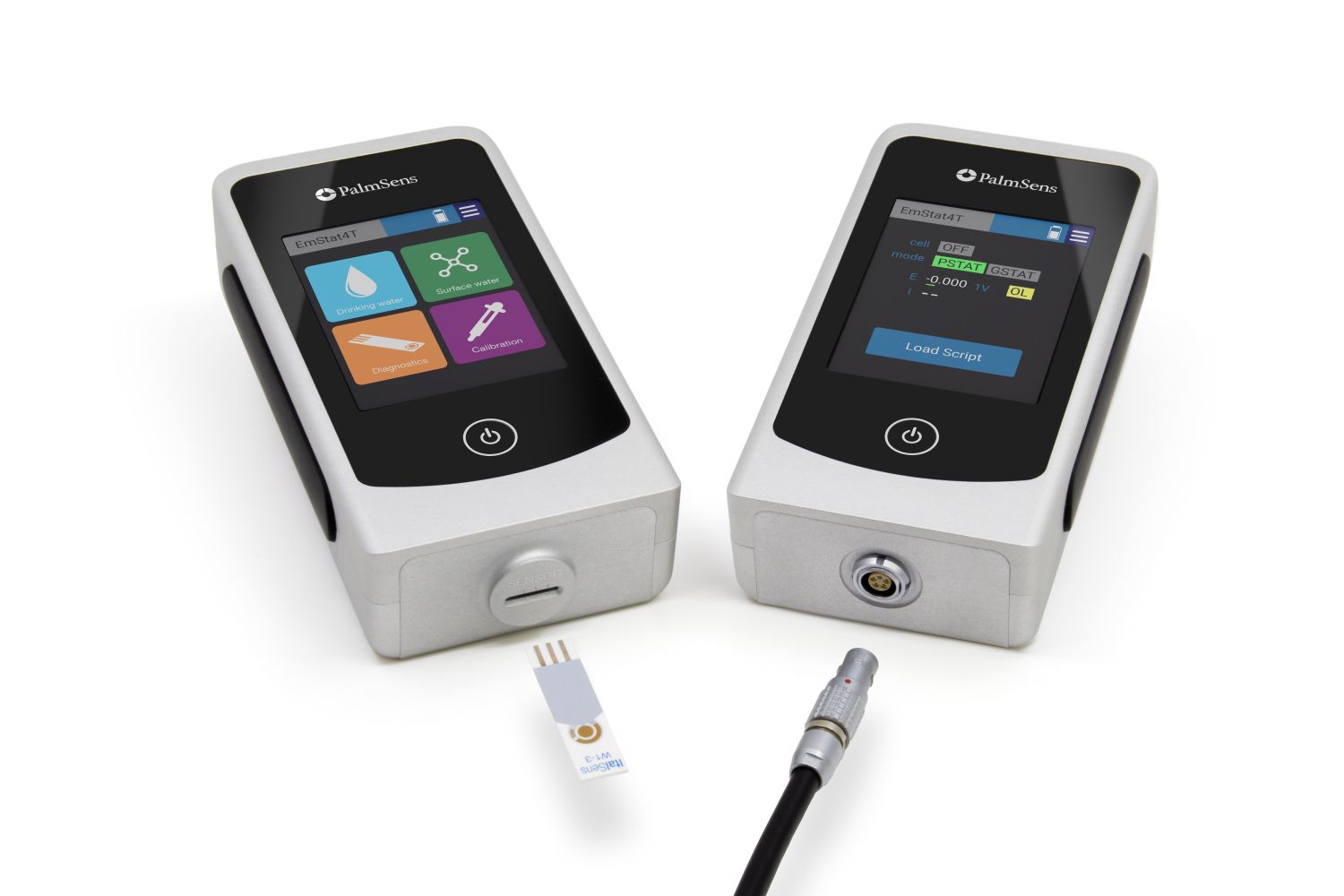

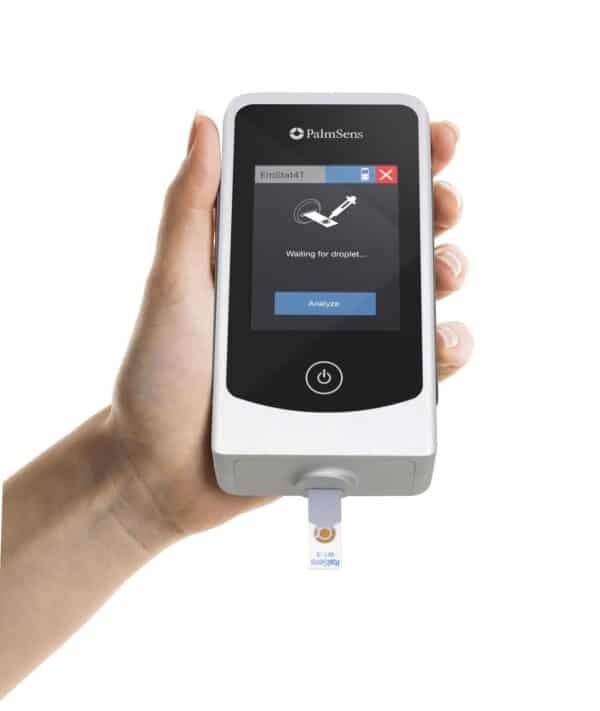

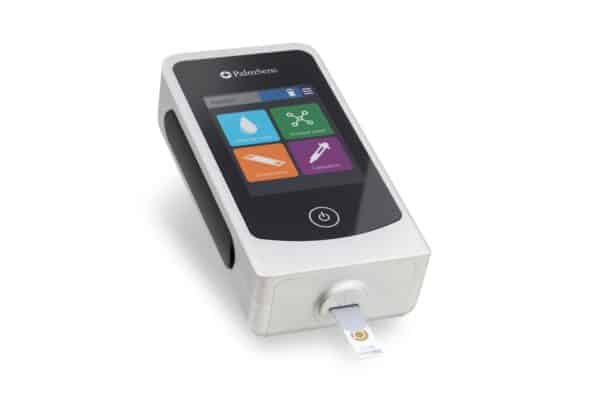

  • Customizable cell interface with drop-detection for SPEs



Description

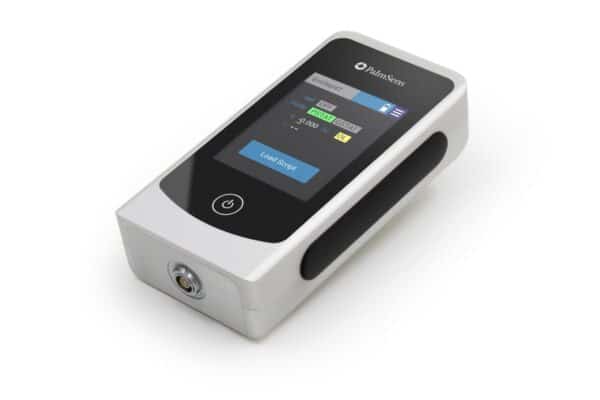

The EmStat4T is a programmable handheld potentiostat with a touchscreen, which is ideal for sensor research and sensor-based applications. It offers two main modes of operation:

  1. Remote Control: where it functions as a conventional potentiostat, controlled directly by our PSTrace software for Windows or PStouch app for Android. These applications allow you to run measurements, view results, and perform data analysis.

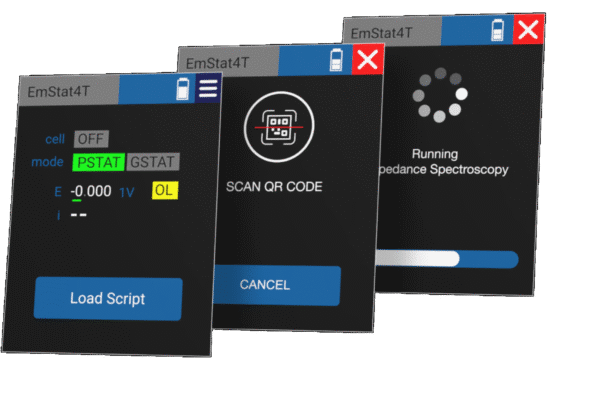

  2. Standalone: where the instrument is controlled via its touch interface to run a wizard‑style app for electrochemical analysis. Compose custom apps easily using the Visual MethodSCRIPT Editor included in PSTrace for Windows. Apps eliminate the need for a computer, tablet, or smartphone. This makes the EmStat4T an ideal solution for point-of-care applications and field research such as environmental analysis or corrosion monitoring.

Main Features

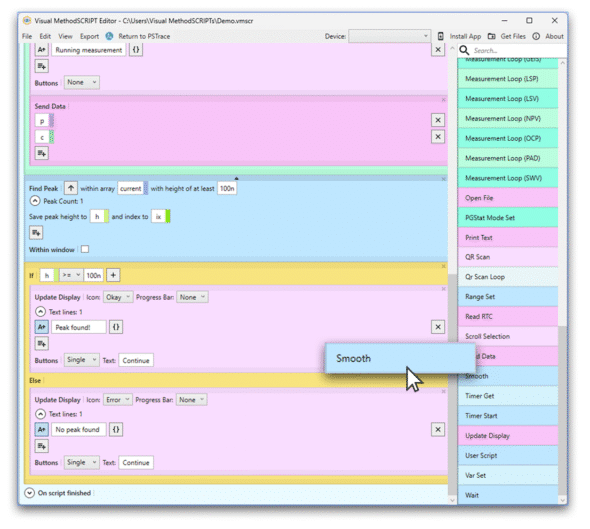

Visual MethodSCRIPT Editor

Create your EmStat4T apps

The powerful MethodSCRIPT™ language allows for easily creating your own applications to run on the EmStat4T. Compose apps using our Visual MethodSCRIPT Editor which generates the MethodSCRIPT for you.

Your measurements are safely stored

Internal Storage

The EmStat4T is equipped with 500 MB internal storage memory for storing your measurements. All internally stored measurements can be browsed and transferred back to the PC easily using the PSTrace software for Windows. Your data is always with your instrument wherever you take it.
