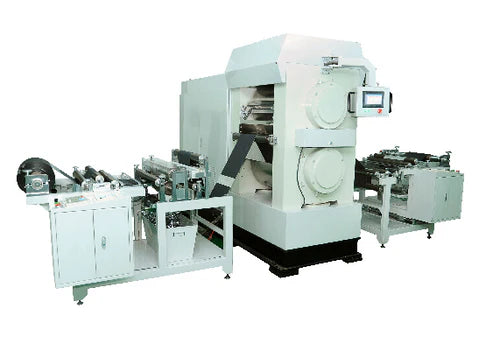

Pressa a rulli a pressione controllata per elettrodi di batterie (larghezza 550 mm) - MSK-DPC-B500-LD

Working Voltage

• 220V +/- 10%, 3 phase, 50/60Hz
• 220V AC Power plug is not included

Max. Power Consumption

• 15 kW

Rollers (one pair)

• Dimensions: 500mm (Dia.) x 500mm(W)
• Material: Hardening Tool Steel with HRC 65,
• Hardening layer thickness: ~19 mm
• Effective Rolling Width: <520 mm
• Max. Diameter of delivering and winding: 500 mm

• 0 - 2 mm adjustable
• Tolerance: 0.001 mm

• 0 - 20 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness

• Thickness Accuracy: ± 0.0025mm
• Surface Roughness: < Ra 0.2

Pressure Control

• Pressure load: 50 - 300 Tons ( 3000KN) adjustable by Touch Screen Control Panel
• Real time pressure display with data saved function

Accessories Included

• Rolling Roller cleaning service built in
• Edge cutting device included
• Dust Removing device installed
• Roller installation and unload cart included

Utility and Environment

• Compressed air: 150psi required (Air compressor is not included.
• Environment Temperature: 25 ± 3
• Environment Humidity: 0~90RH

Articles

• Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)
• Analysis of geometric and electrochemical characteristics of lithium cobalt oxide electrode with different packing densities

Application Notes

• It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor).
