PROTIUM

Spectronik

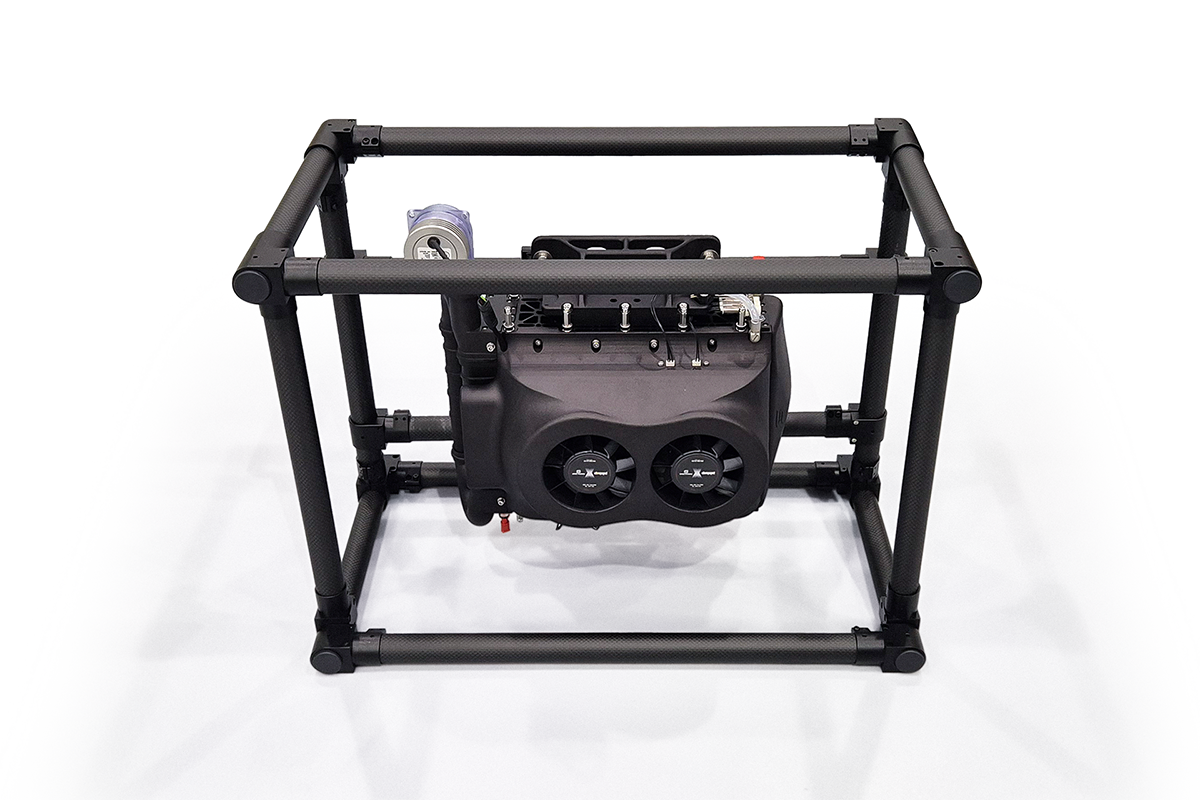

The Protium-1000 is a Closed Cathode, air-cooled Hydrogen fuel cell with higher Current density, operational capability
in a wider ambient temperature range, and longer product lifetime than typical Open Cathode fuel cells in the market.

Capable of delivering up to 1000W of net usable power, the Protium-1000 is ideal for applications such as
aerial drones, ground robots, portable power packs, electrical equipment and personal mobility devices.

The Protium-1000 can be set up in less than 1 minute anywhere with no extra tool or equipment required.
Each system also comes with smart electronic controller for autonomous operation, error protection,
remote control, live system monitoring and data logging.



FEATURES
  • Closed Cathode Separate oxidant reactant and cooling air channels
  • High Current Density Up to 0.9A/cm2 at 0.6V/cell
  • Low Purge Losses <3% due to intelligent dynamic purge frequency
  • Integrated Leak Sensor Increased user safety by early detection of stack leakage
  • Plug and Play No tools required for assembly
  • Smart Controller Autonomous fuel cell controls and system protections
  • USB Connectivity UART-to-USB interface cable for PC connectivity with optional wireless radio modem
  • IOT Ready Live monitoring of fuel cell status and data logging via PC/Android GUI App


Specifications

Rated/Gross Power
1000/1200W or 3000/3600W
Rated/Gross Current
55.5/66.6A or 62.5/75.0A
Voltage Output
18-27VDC or 48-72VDC
Start-up Time
30s
Operating Ambient Temp.
[-10,45]°C
Operating Altitude
1500m AGL
System Weight
5.1kg or 10.0kg
Max Dimension
331 x 174 x 317mm or 625 x 326 x 174mm

Fuel Supply

Hydrogen Gas
Dry, 99.999% purity
Delivery Pressure
0.7 bar (10 psig)
Fuel Consumption
12.5L/min or 39L/min
Gas Tubing
PU, 8 x 5.5 (Supply); 6 x 4 (Purge)
Supply & Purge Control
Solenoid valves with integrated pressure sensor

Electronic Controller

Processor Board
WELTER V1.7
Weight (including casing)
950g
Output Connector
XT-90
Warning & Protections
Low voltage, high/low temperature, high/low pressure, low external power supply, stack leakage
Communication
UART (USB cable for PC connectivity provided)
Data Acquisition (DAQ) Software
PC GUI App
Remote Control
Fan speed, blower speed, manual purge, remote on/off

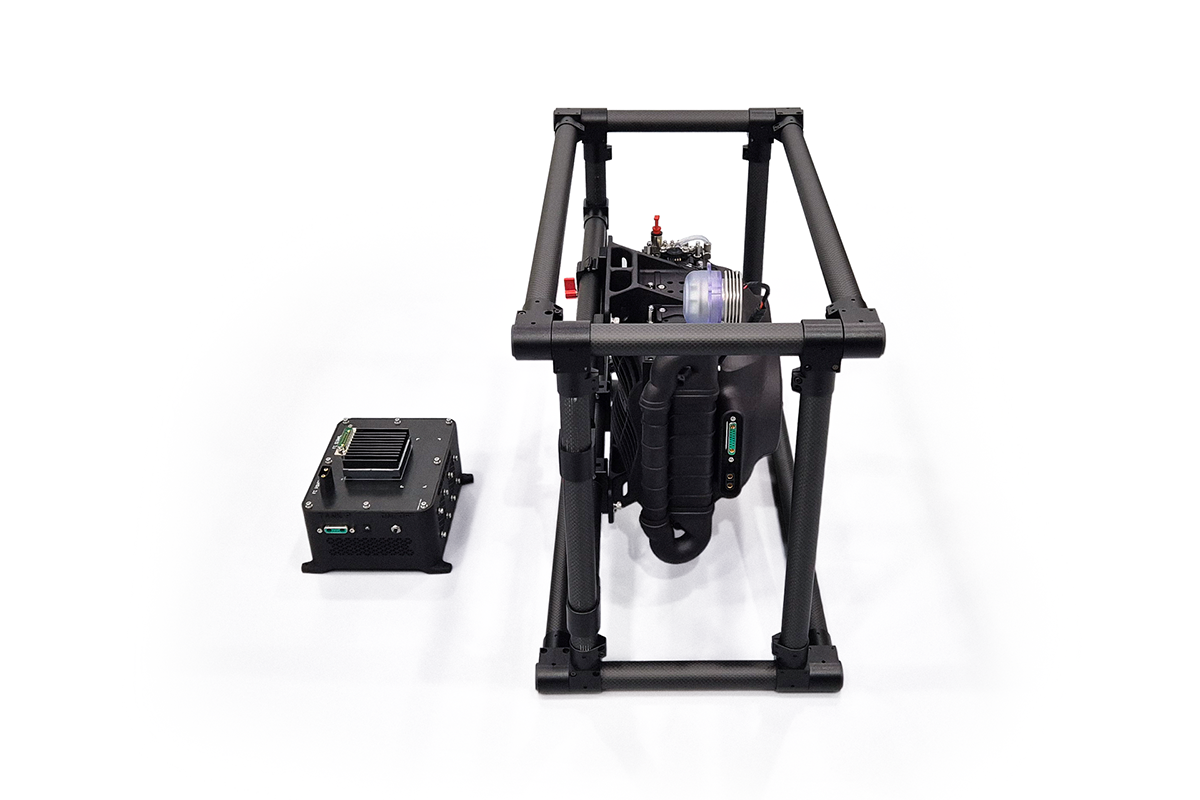

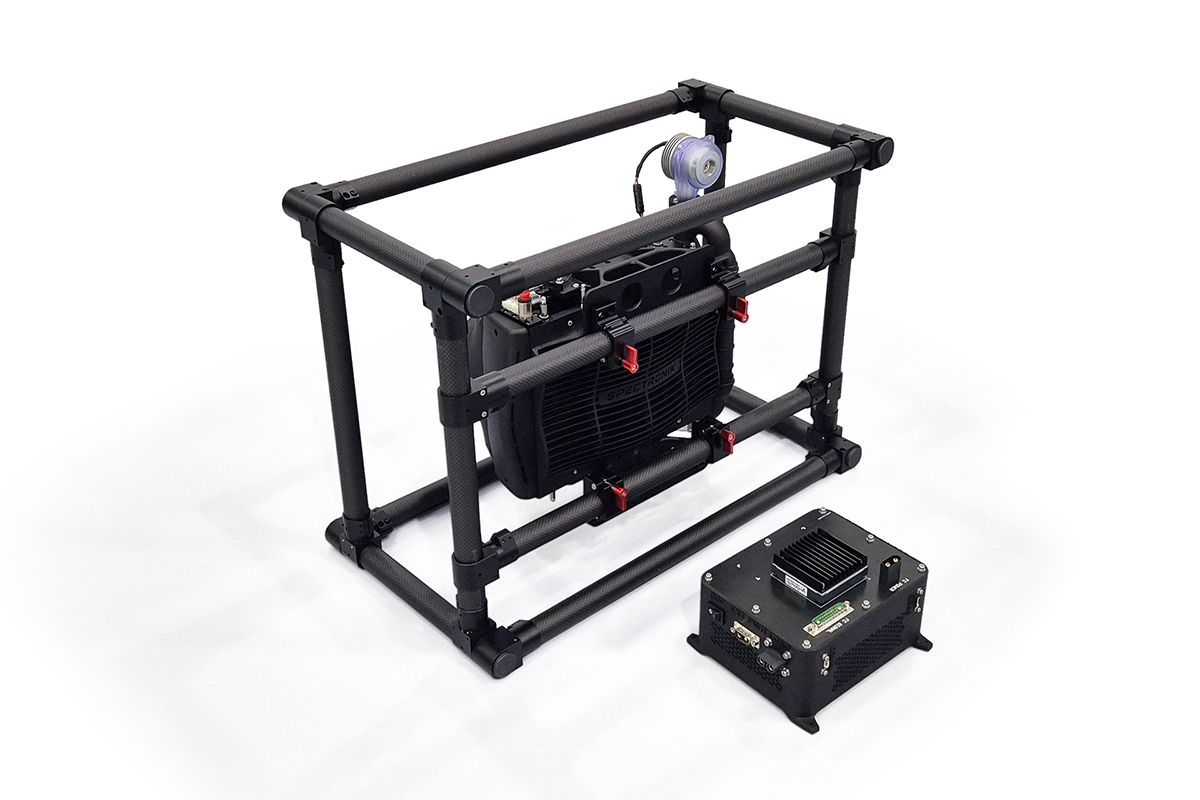

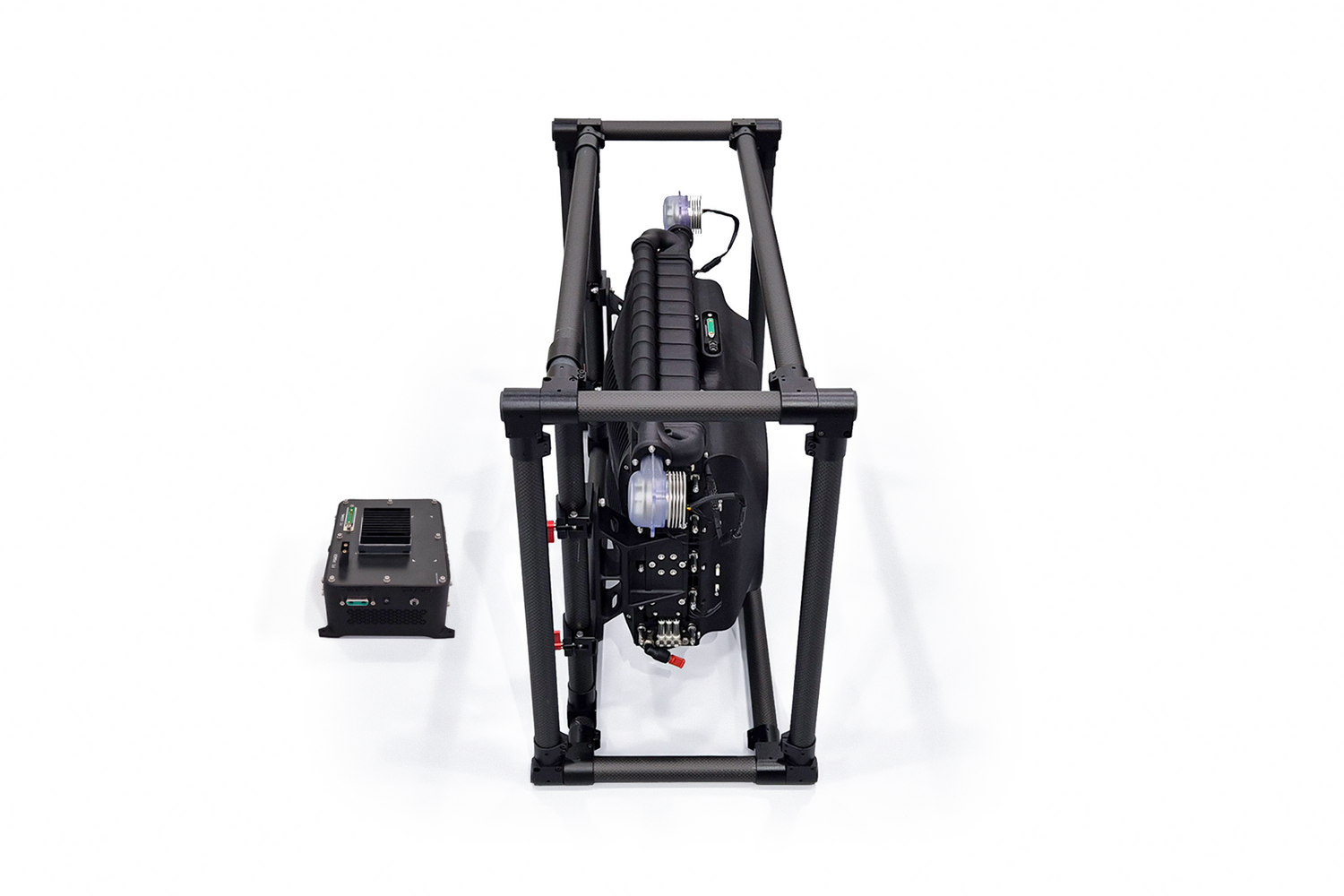

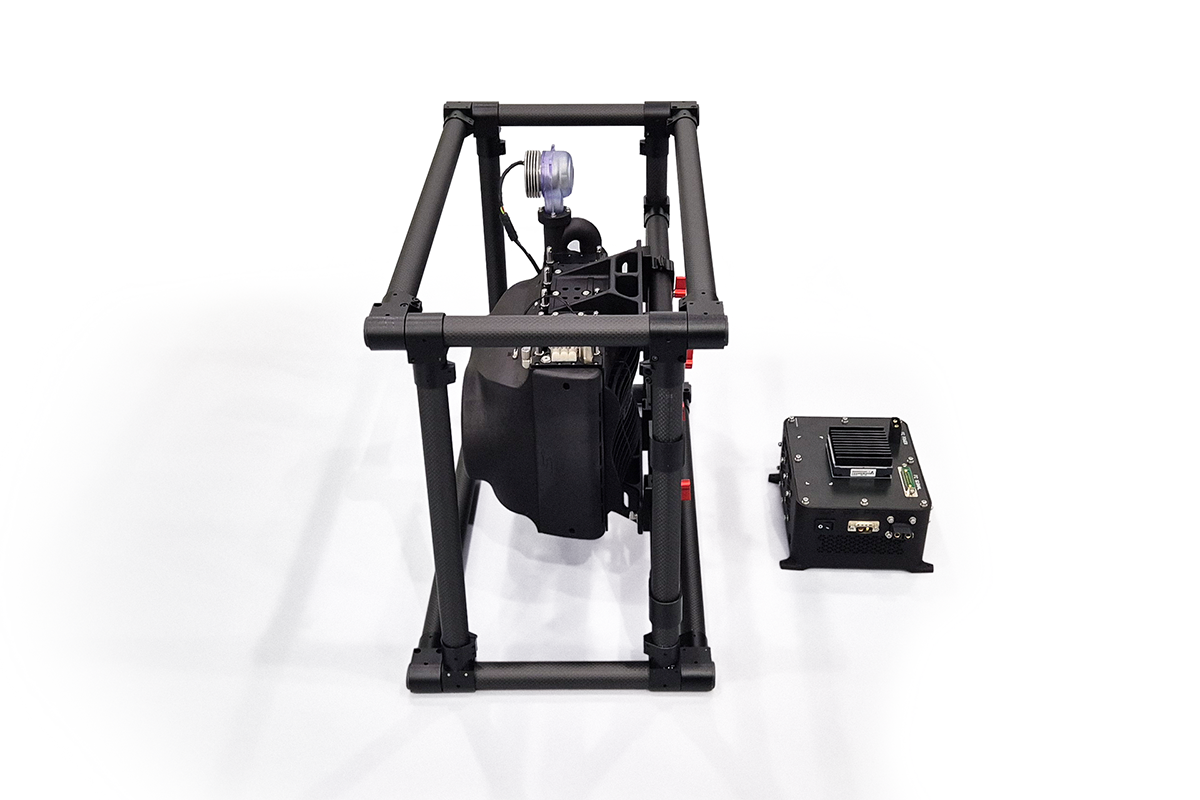

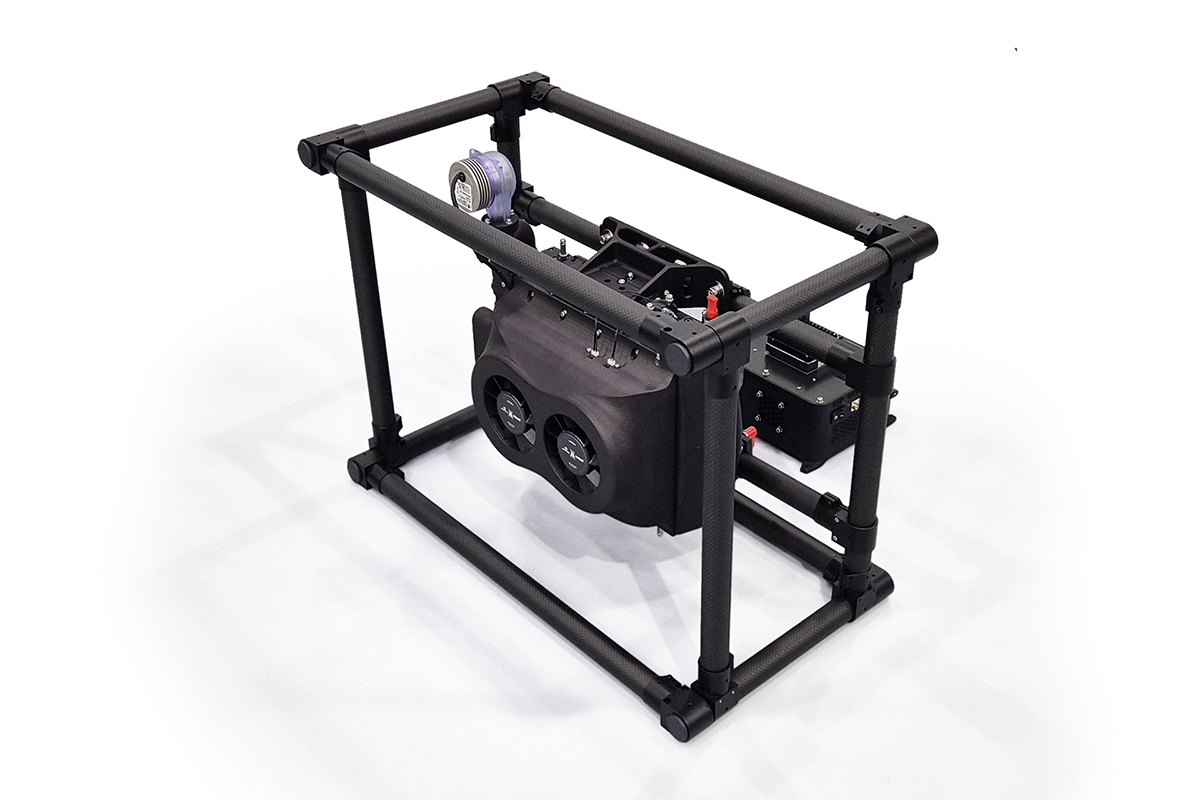

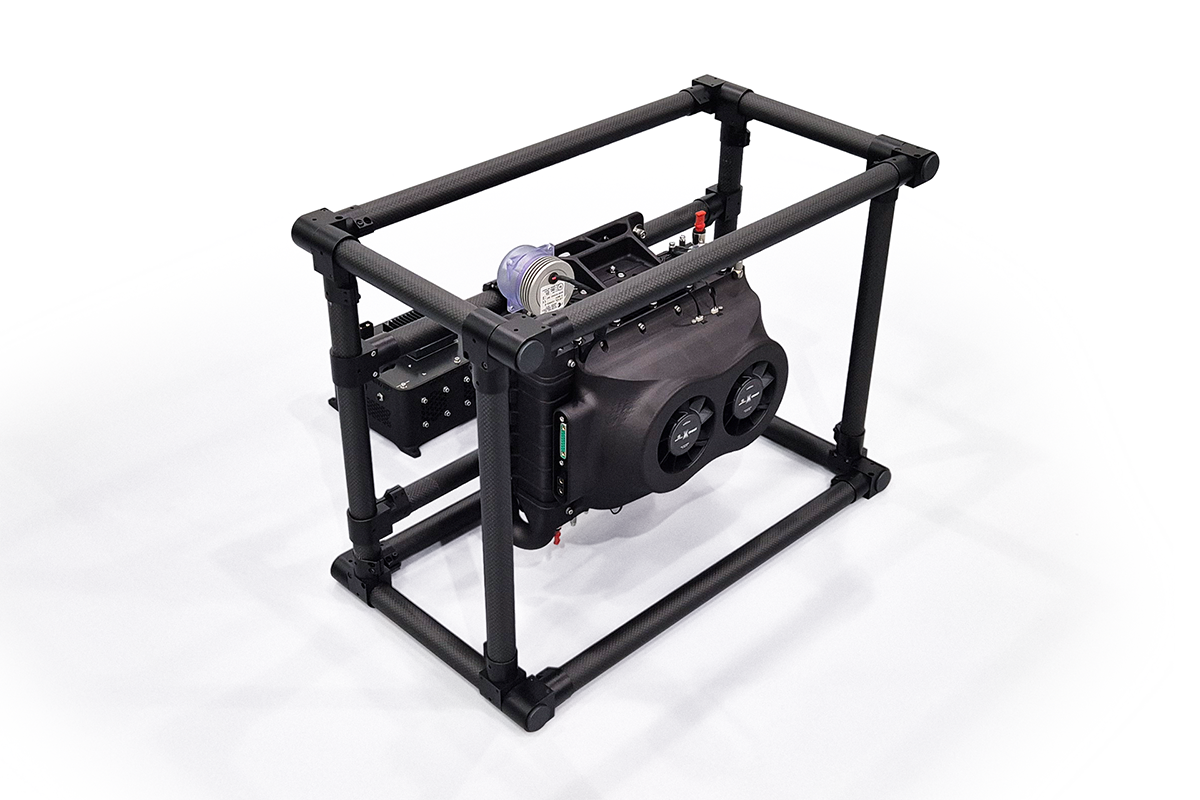

What’s in the Box

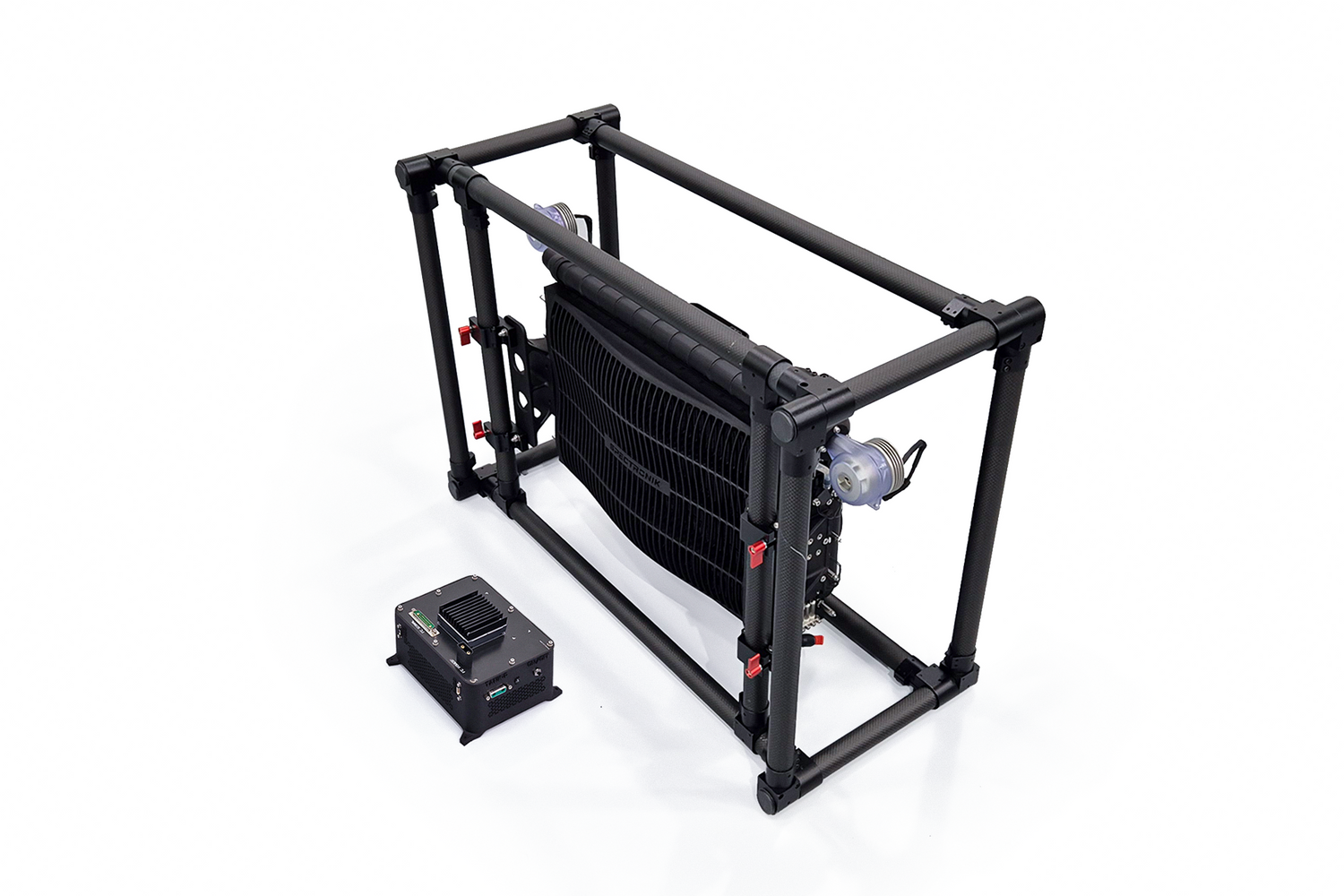

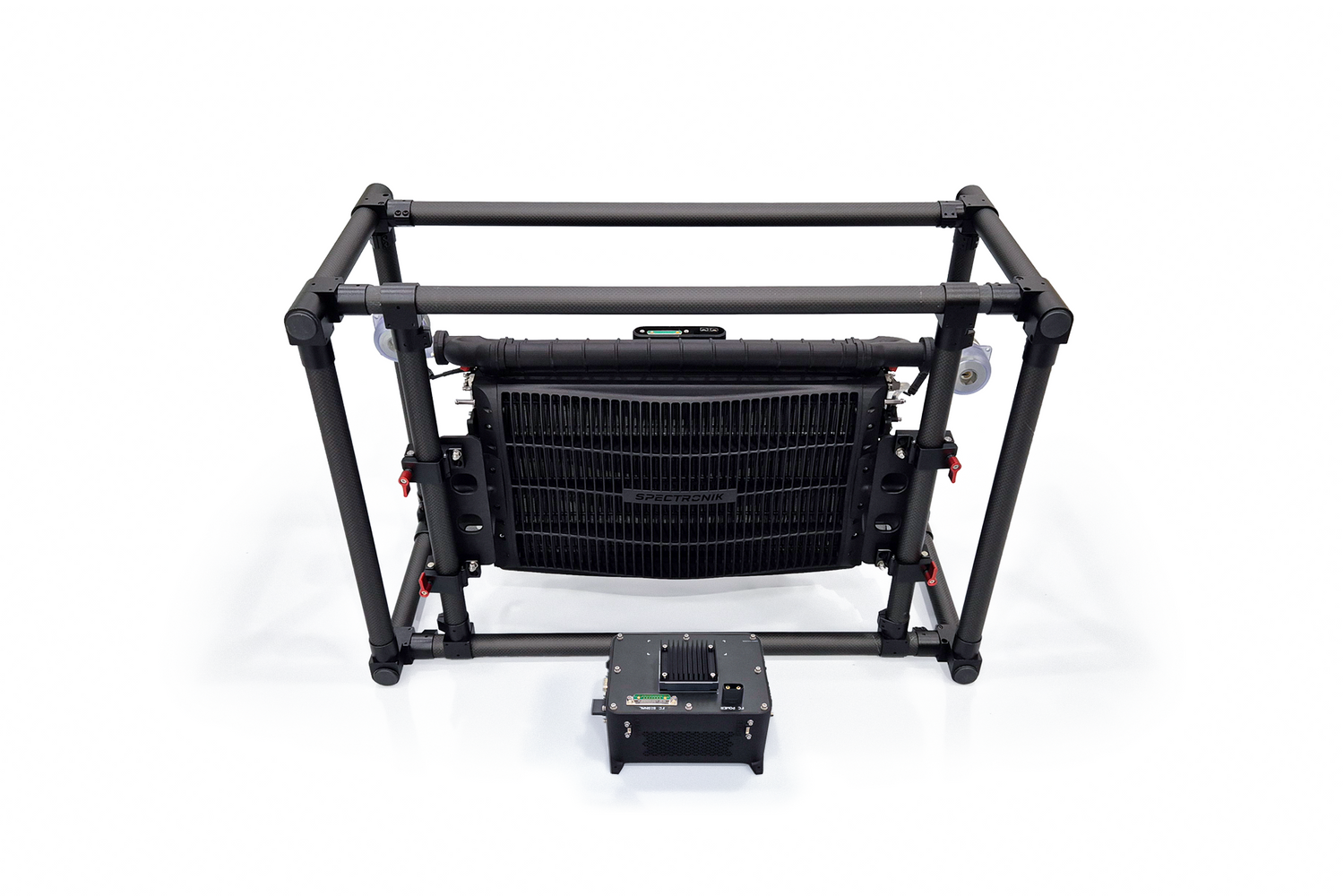

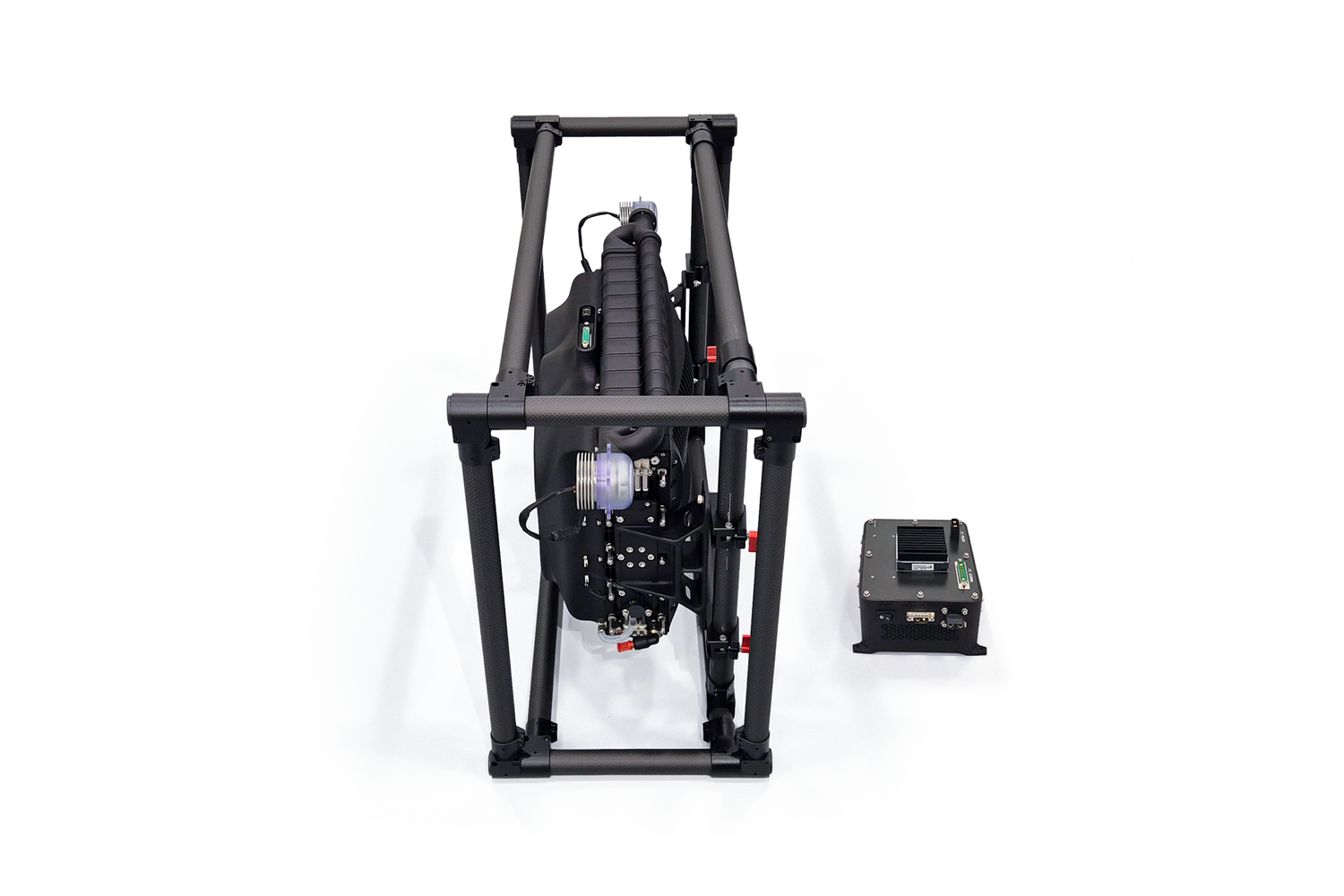

  • 30-cells or 60-cells graphite plate fuel cell stack with protective casing, oxidant manifold and cooling airflow hood
  • Electronic controller with protective casing

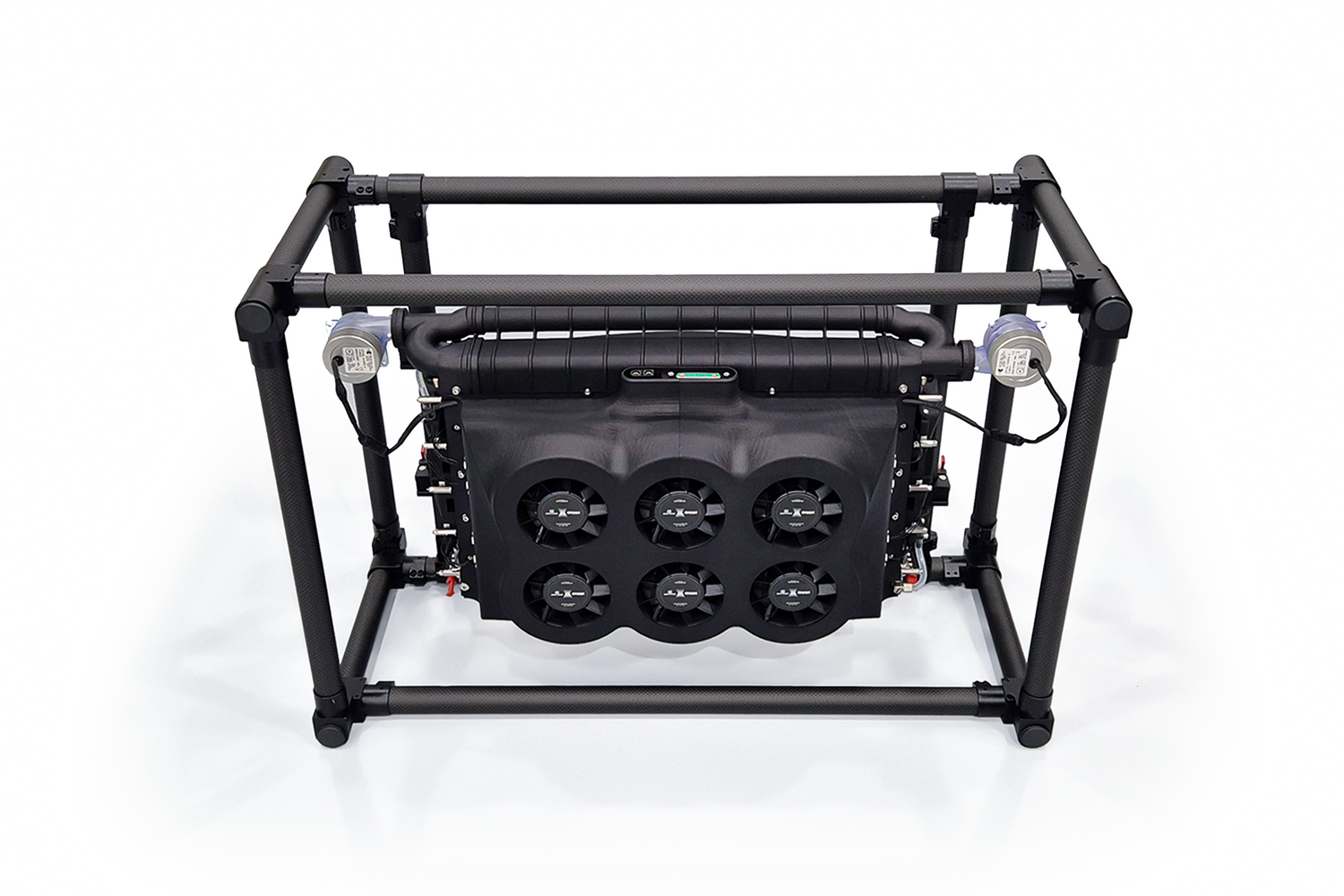

  • Heat management system (cooling fans with integrated DC-DC power supply and pwm control)
  • Oxidant and fuel supply system (blower, solenoid valves, gas pressure sensor, gas tubing and connector)
  • User interfaces (On-off push button, status LED, XT-90 output connector, BOP switch, external power supply connector)
  • USB connectivity or ultra long range radio modem transmitter and receiver

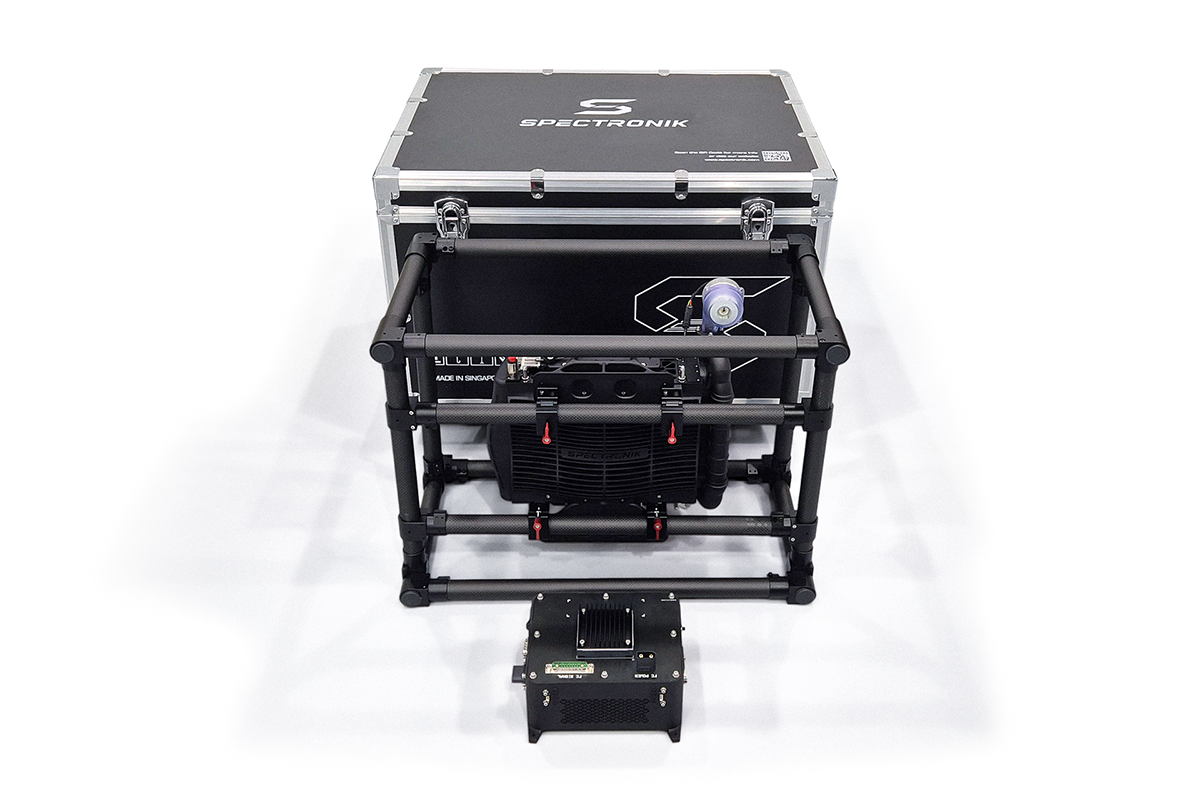

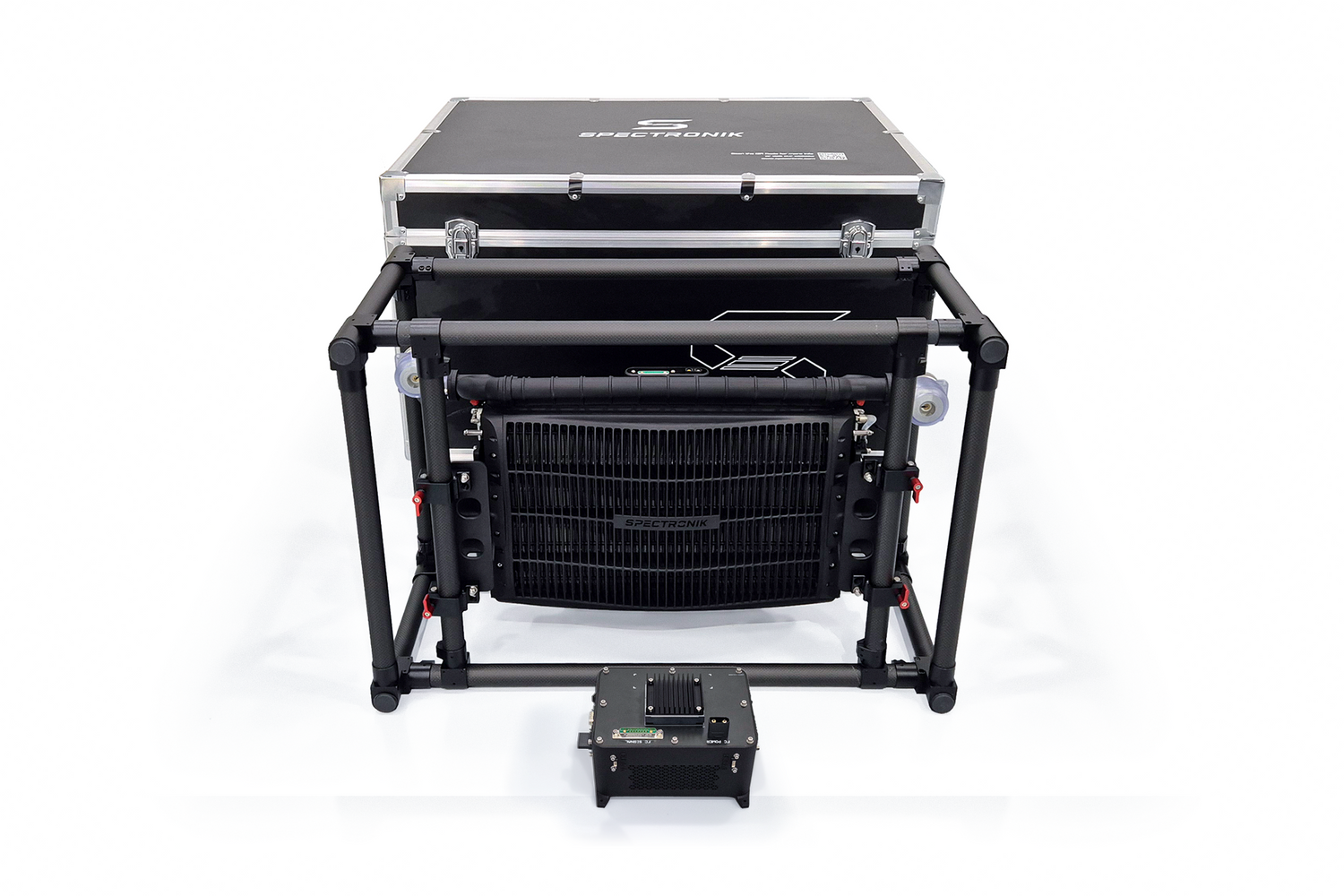

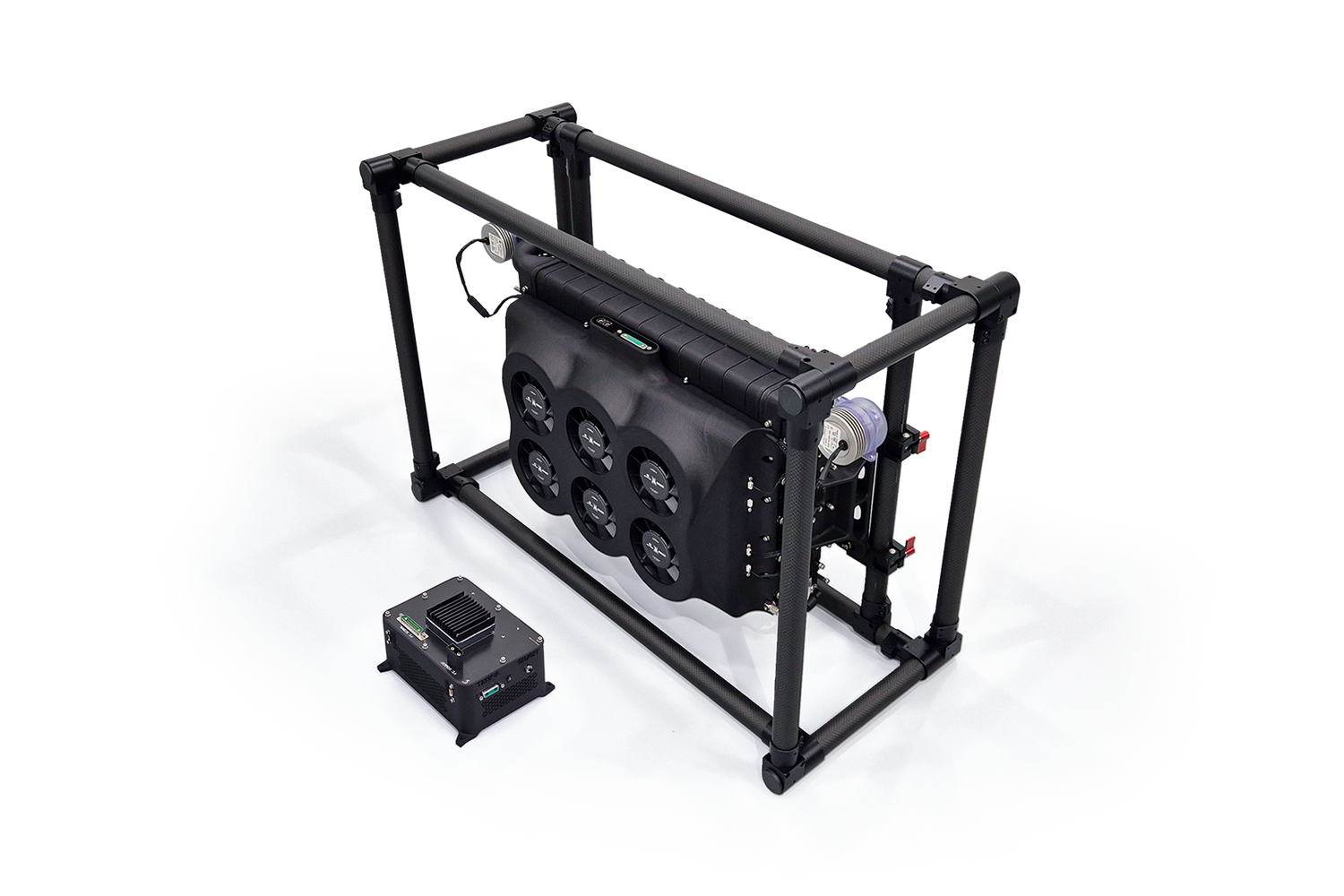

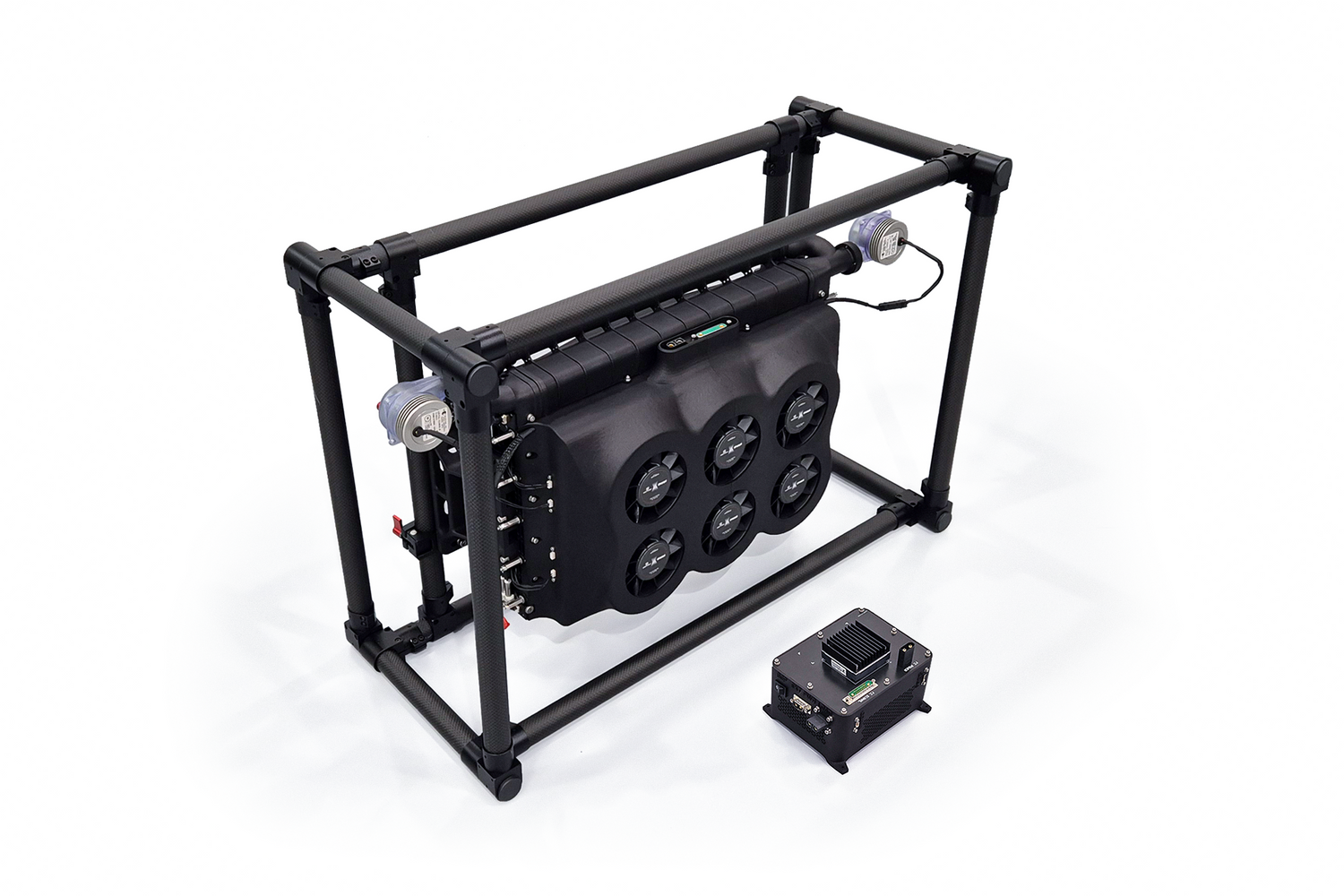

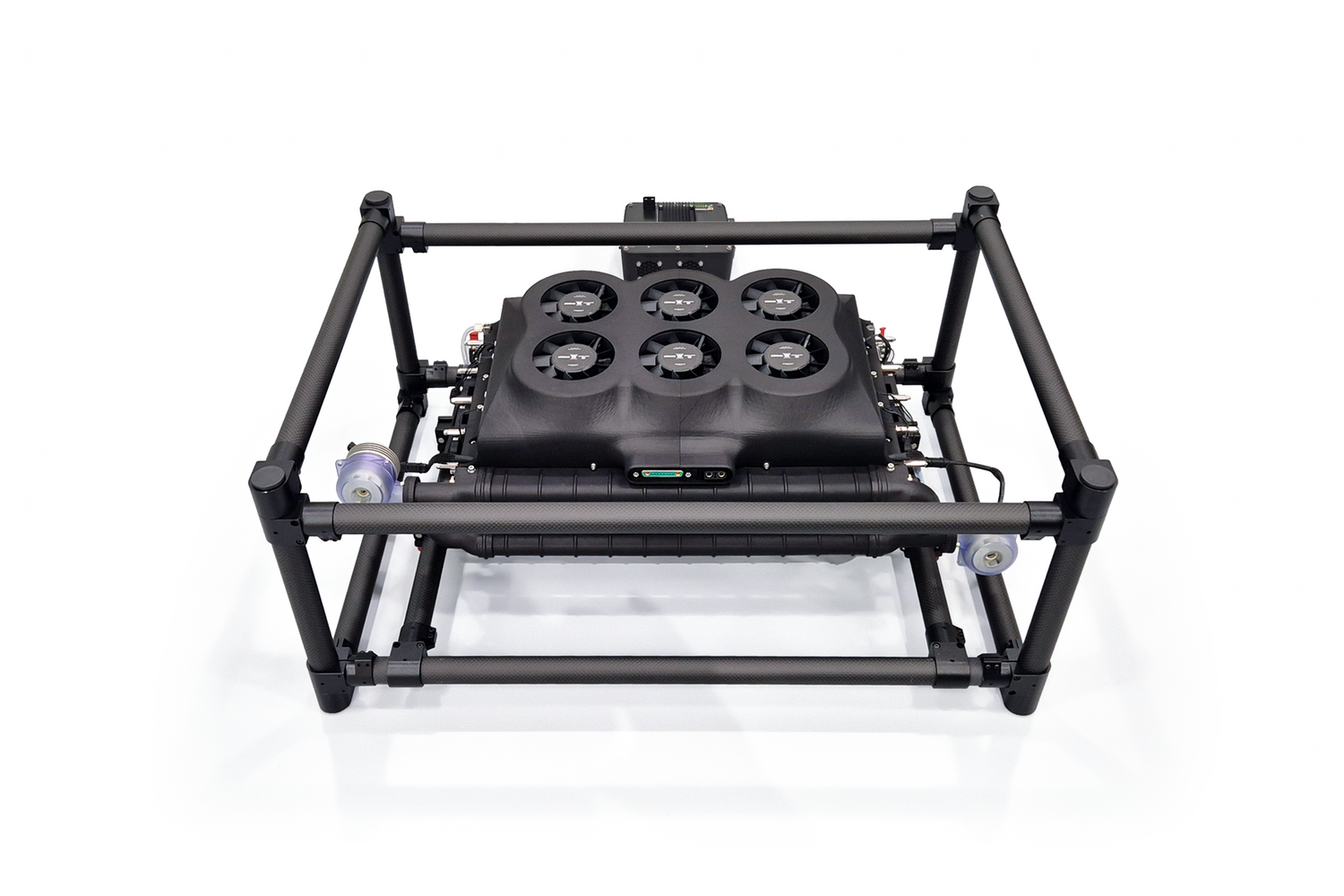

  • Carbon fiber mounting rack for bench-top testing and transportation protection
  • Factory Acceptance Tests (FAT) report

Test Conditions

  •  Ambient temperature: 24°C
  • Relative humidity: 60%
  • H2 supply pressure: 10psig
  • Dead-ended operation
  • Balance-of-plant powered by fuel cell
  • Tcell at 1000W: 66°C



Technical Dossier.PDF
