MTI | SKU: GSL1700X100

Forno tubolare a 1700°C con tubo da 100 mm e accessori completi - GSL-1700X-UL| Dimensione tubo| 100 OD, mm

Name: Forno tubolare a 1700°C con tubo da 100 mm e accessori completi - GSL-1700X-UL| Dimensione tubo| 100 OD, mm
Brand: MTI
SKU: GSL1700X100
Availability: InStock

€0,00

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

MTI

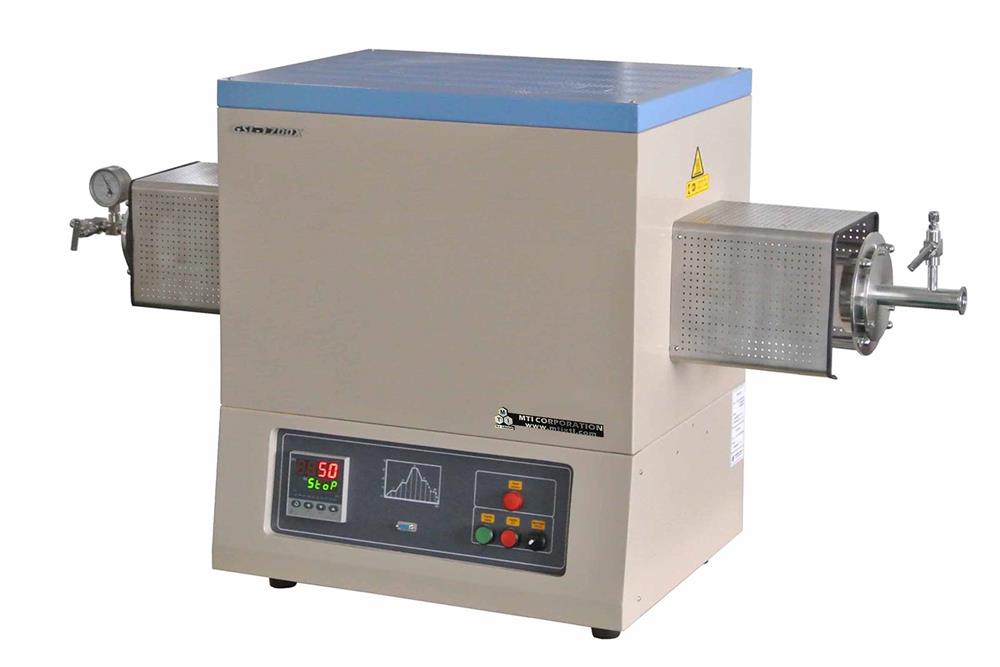

GSL-1700X-UL is a bench-top tube furnace with 1800 Grade MoSi2 Heating Elements. It is widely used in material & chemical research labs to sinter all types of new material samples under vacuum and other gas conditions. Vacuum sealing assembly is installed with KF25 vacuum port and 1/4" gas pipe adaptor. It is controlled by a programmable digital controller with an accuracy of +/-1 ^oC. This tube furnace has a max. working temperature up to 1700 ºC.

SPECIFICATIONS

Furnace Structure	Double-layer steel casing with air cooling Two cooling fans inside to keep case temperature < 55 ºC High purity Alumina refractory chamber One piece of High purity Alumina tube is included with optional dimension The alumina tube is consumable and no warranty covered. Please click the picture to order spare
Power	Max. 7 kW
Voltage	Single Phase, 220V AC, 50/60 Hz (40 A breaker required)
Max. Working Temperature	1700 ºC < 1 hour
Continuous Working Temperature	800-1600 ºC
Max. Heating/ Cooling Rate	10 ºC/min
Heating Zone	457 mm (18")
Constant Temperature Zone	150 mm (6")
Heating Elements	Super 1800ºC grade MoSi₂ heating elements (30 x 330 mm), 8pcs
Temperature Controller Eurotherm 3000 Series optional	PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired 30 programmable segments for precise control of heating rate, cooling rate and dwell time Please click here to learn why SCR is more accurate than SSC (Solid state relay) Built-in over-temperature alarm and protection allows for operation without the attendant +/- 1 ºC temperature accuracy RS485 Communication Port Optional: The furnace may be operated by PC by installing a control module. Please order an MTS-02 control module at extra cost. If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems. For more information please click here. Eurotherm 3000 Series Programmable Temperature Controller is available at the extra cost with 1 program, 24 segments programmed with ramping, cooling and dwelling steps Temperature Accuracy: ± 0.1ºC
Sealing Flanges	One pair of sealing flanges with double silicone high-temperature O-rings is included Two SS needle valves and one dial vacuum gauge are installed on flanges for immediate use
Fitting Ports	Standard 1/4‘’ Barbed fittings with needle valves For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order Optional: You may also consider using the parts in below to increase the vacuum efficiency Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr (see picture below and click to enlarge) You may click here to order flow-meter and install in tube flange (see picture below) KF25 stainless steel bellows KF25 quick clamps
Vacuum Level	Limited by the vacuum pump 50 mtorr can be achieved by the mechanical pump 10^-5 torr can be reached by molecular pump The vacuum pump is not included, please order separately at the related products section
Power Plug & Cable	10 feet length 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by click the picture below-left The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store
Dimensions	590 L x 490 W x 760 H mm
Net Weight	168 kg (370 lbs)
Shipping Dimensions	52" L x 40" W x 50" H
Shipping Weight	530 lbs
Warranty	One year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below)
Compliance	CE Certified NRTL or CSA certification is available upon request at extra cost.
Application Notes	In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use, please click here to learn how. Vacuum pressures may only be safely used up to 1500 °C The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa (absolute pressure) Attention: it is necessary to install the gas pressure regulator to reduce the output pressure 3 PSI, avoid over pressurizing the furnace chamber, and ensure safe operation. Click here to learn the installation of a gas regulator. The flow rate for gases should be limited to < 200 ml/min) for reducing thermal shocks to the tube Two fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube (Ceramic blocks must be fully inserted into the furnace chamber before heating).
