1600°C Max. Atmosphere Controlled Induction Melting-Casting System (10 L Capacity) - IMCS160010L
MTI

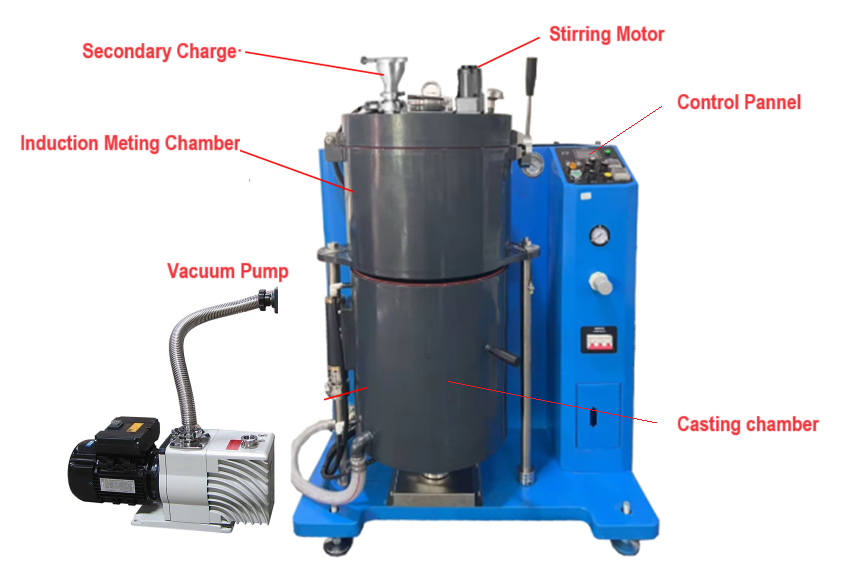

IMCS-1600-10L is an induction semi-auto melt-casting system with 10 L capacity for various metal alloys up to 1600ºC under an inert environment. The functions of mechanical stirring and secondary charge are optional upon request.
SPECIFICATIONS:
| Power Requirements | 380 or 480 VAC, 3p, 50/60Hz Max Output: 35 KW |

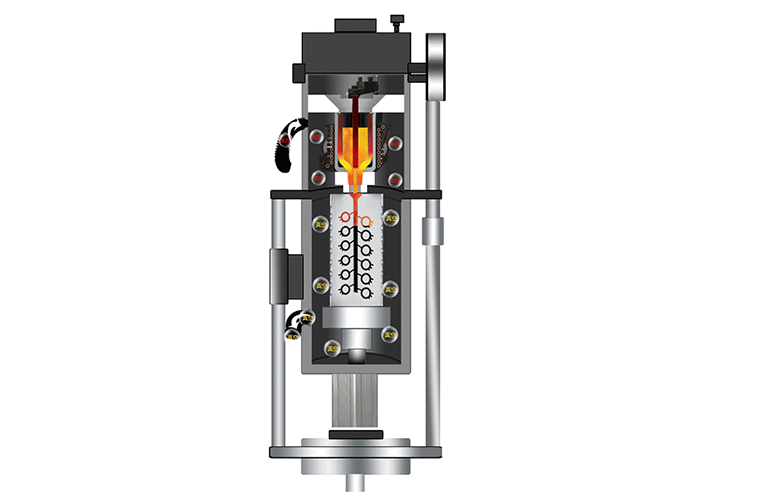

| Induction Heating Chamber | 10-L capacity of the graphite crucible with dimension of Φ215×300mm (about 15 kg steel) Pneumatic graphite stopper for pressurized melt-casting process (~20 psig) An 18-turn water-cooled induction coil for uniform heating. Water-cooled heating and casting chambers. Mechanical stirring and secondary material doser are optional upon request. |
| Casting Chamber | Water-cooled and atmosphere-controlled casting chamber Pneumatic lift system to facilitate casting chamber open and close. Various options of casting mold upon request. Please contact us for details. |
| Casting Mold | Casting mold is required but not included in the standard package. Please contact us for more details. |
| Water-cooled Copper Mold (Optional) | Customized water-cooled split copper mold is optional, which allows faster cooling of the melt. reduce the possibility of oxidation during casting easily remove the ingot from the mold after casting |
| Temperature Control | Max working temperature 1600ºC Type B thermocouple with graphite sheath Programmable temperature control with up to 20 segments. |
| Vacuum and Inert Gas | Max vacuum level: 1 torr A mechanical pressure gauge is included. Inert Gas Requirement: 5 L/min @ 0.7 bar (10 psi) hi-purity nitrogen or argon Double stage rotary vane vacuum pump is included |
| Water Chiller (Optional) | A 50 L/min water circulator is required but not included to cool down the induction coil, chambers, and optional copper mold |
| Compressed air | 58~87 psi compressed air is required. An air compressor is optional to provide compressed air supply. |
| Compliance | CE certified NRTL or CSA certification by the third party is available upon request at the extra cost |
WARRANTY
One-Year limited warranty.
The One Year Limited Warranty does NOT cover:
- Consumable parts, such as graphite dies, O-rings, crucibles, screws, washers, glassware, etc.
- Any damage and rust resulting from improper storage or maintenance.
- Any damages caused by the use of corrosive and acidic gases.
- Any damage resulting from failing to adhere to the individual product's specific operation requirements, such as water cooling, venting, etc.
