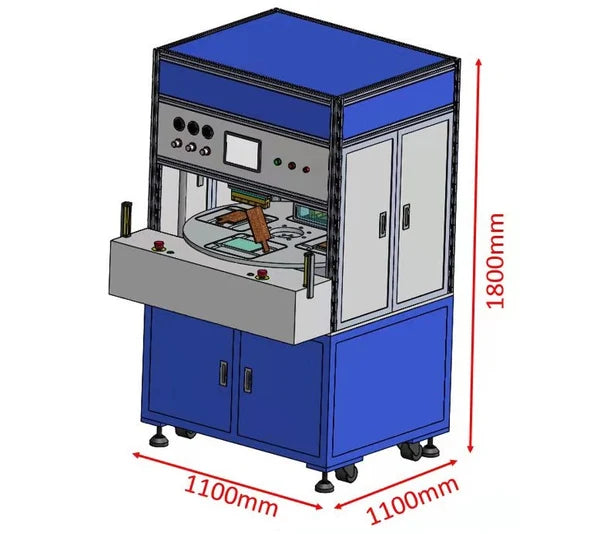

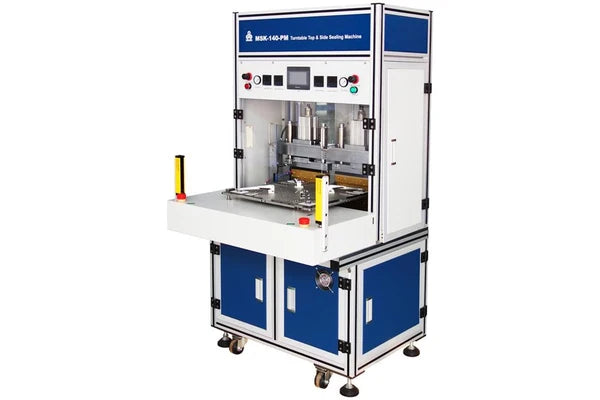

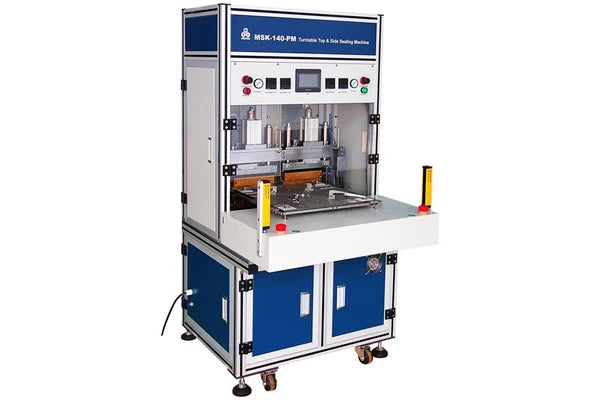

Selladora Rotativa por Calentamiento para 4 celdas en 2 Lados de la Valija sin Vacío - MSK-140-PM

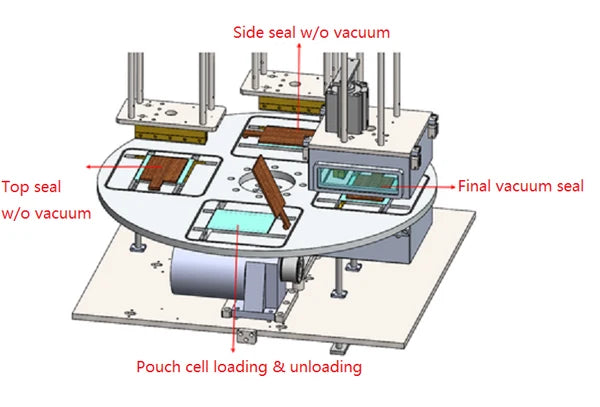

MSK-140-PM can seal 4 pouch cell cases by sealing two sides automatically and leaving one side open to fill electrolyte and seal case under vacuum sealer.
The machine can seal the case of the pouch cell at the speed of 200 -- 400 pcs/ hr.

SPECIFICATIONS:

Power Supply	AC 220V, 50/60Hz, Single Phase
Max. Power	2,500 W

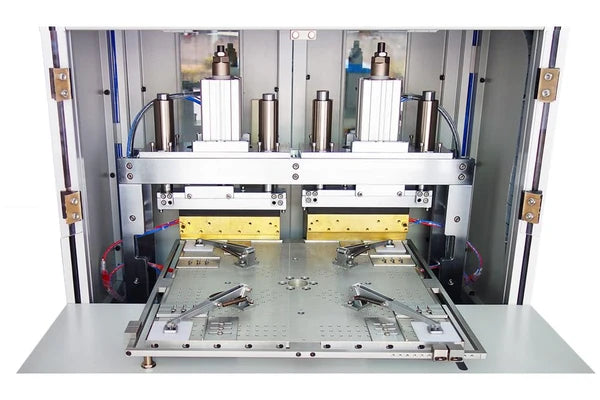

Sealing Features	The sealing machine will automatically seal the top/side of four pouch cells.
Cell Size	Max. 200 mm L x 200 mm W x 15 mm T
Sealing Length	210 mm
Sealing Pressure	Max 200 Kgf
Sealing Width	2~8 mm
Sealing Thickness	0~0.5 mm
Sealing Temperature	250 °C maximum with controlling accuracy +/-2.5 °C
Productivity	200~400 pcs / hour
Air Consumption	0.09 L / Sealing
Heating Timer	0 - 99 seconds Adjustable Recommended: 2 - 3 seconds
Option	We might add a final vacuum sealing in this machine upon request
Compliance	CE Certified NRTL certification is available upon request
