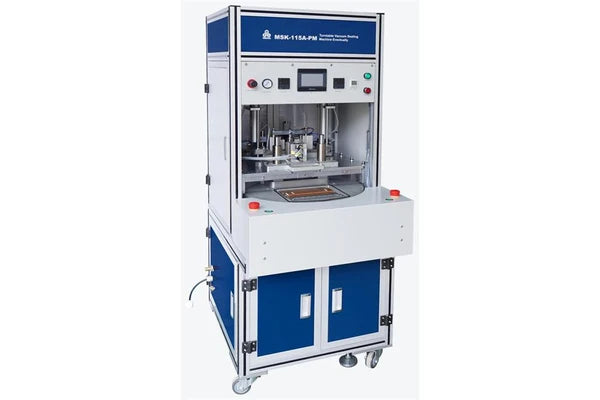

Selladora de Vacío Rotativa para Pilas Pouch (2 pilas rotativas) con Mayor Velocidad- MSK-115A-PM

MSK-115A-PM is a rotary vacuum sealer at fast speed, which can rotate 2 cells (pre-sealed in two sides ), and when one pouch case is sealed under vacuum and another pouch case can be loaded in the front holder. The estimated sealing speed is about 100 pcs per hour. The machine can be used for either solid-state battery and liquid Li-ion battery in a dry room

SPECIFICATIONS:

Power Supply	AC 208 - 240V 50/60Hz, Single Phase AC110V is available via a 2000W transformer
Max. Power	1,500 W
Air Pressure	0.5 ~ 0.8 MPa inert gas or compressive air pump ( not included ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range
Heated Sealing Blade	Sealing strip Width: 6 mm Sealing strip Length 200 mm Sealing Temperature: Max 250 with accuracy: 2.5 The automatic piercing function is built-in Optical sensors are built-in to ensure loading pouch case safely.
Max Cell Size to seal	L 180 mm x W 135 mm x H 15 mm
Heating Time	0 - 99 Seconds Adjustable
Vacuum Level	Max. -95 Kpa
Certification	CE Certified NRTL or CSA certification is available upon request
