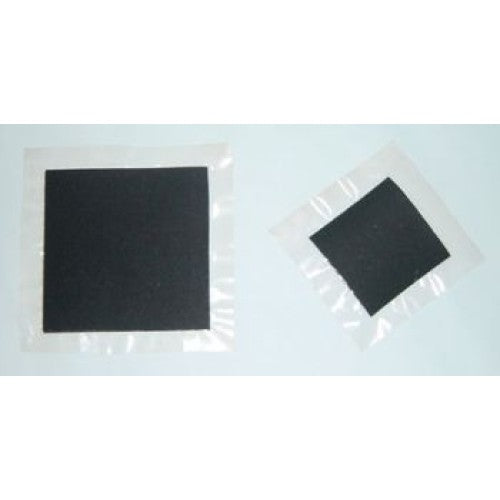

Hydrogen Air MEA - 5 Layer

5-Layer Membrane Electrode Assembly (MEA) with integrated Gas Diffusion Layers (GDL) for use in Hydrogen/Air Fuel Cells.  One of the most economical and cost effective MEAs on the market

the standard configuration features a mid-range Platinum loading (0.5 mg/cm²) and a 0.002” membrane and a 410 microns thick woven carbon cloth GDL (others available).  Custom sizes and configurations are also available with no minimum order quantities and typical lead times of 1 to 5 business days

even for custom configurations. These Hydrogen Air MEAs are 5-Layer.

Active Area

Membrane Area

2.2cm x 2.2cm

10.0cm x 10.0cm

5.0cm x 5.0cm

10.0cm x 10.0cm

7.1cm x 7.1cm

12.0cm x 12.0cm

10.0cm x 10.0cm

12.0cm x 12.0cm

MEA Properties

MEA Type

Hydrogen Air Fuel Cell

Membrane Type

PFSA Membrane

Membrane Thickness

50.8 micrometers (2 mil)

Anode Loading

0.5 mg/cm²

Anode Catalyst

60wt% Pt on Vulcan (Carbon)

Cathode Loading

0.5 mg/cm²

Cathode Catalyst

60wt% Pt on Vulcan (Carbon)

Gas Diffusion Layer

Carbon Cloth with MPL - W1S1011

Gas Diffusion Layer Type

Woven Carbon Fiber Cloth

Gas Diffusion Layer Thickness

.410 mm (410 microns)
