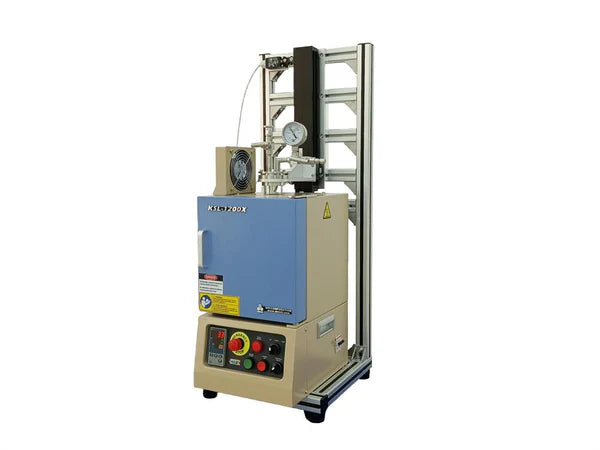

Forno scorrevole verticale a 1200°C max con riscaldamento/raffreddamento rapido - KSL-1200X-J-Q

KSL-1200X-J-Q is a 1200ºC max. Multi-functional lab furnace. It has a heating chamber of 6"x 6"x7" as a box furnace and can be used as a vacuum tube furnace with an optional 2” and 3.1" OD quartz tube with a flange that can be inserted from the top of the box furnace. A quick-moving mechanism is installed in the back of the furnace, which can insert the vacuum-sealed tube into the heating chamber for fast heating and lift the tube for fast cooling to quench the material.

SPECIFICATIONS:

Power	Voltage: 208 -240V Single Phase 50/60 Hz 2.5KW ( not suitable for running at 110V ) Note： Power cable included but without a plug. Please install a plug by your own or click the link below the picture to choose a plug according to your country or your lab requirement

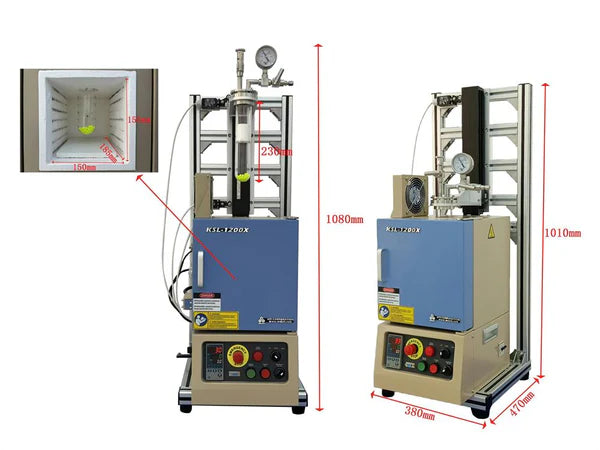

Heating Chamber of Box	150mm(D) x 155mm(W) x 180mm(H), ( 6"x6"x7") Capacity： 4.2 Liter or 0.44 cubic ft Working Temperature: 100-1200 °C continuously in air or inert gas . ( 1000oC max if vacuum ) Heating rate: 30°C/ min. Temperature Stability: +/- 1.0 °C K types with Ceramic Sheath

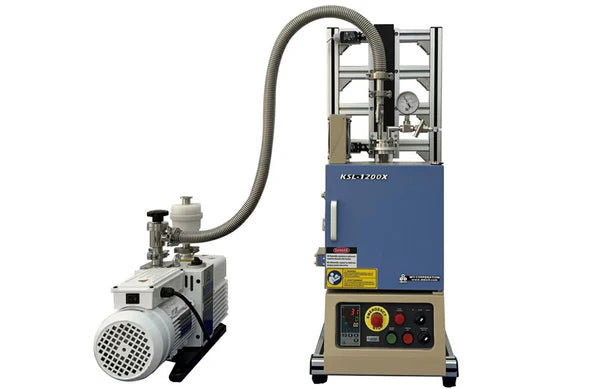

Processing Tubes ( 50 mm or 80mm tube & KF flange)	2 ", or 3.1" on-end closed quartz tubes with flange can be inserted into the heating chamber to treat the sample under a high vacuum or controlled atmosphere. Please choose from the product options bar. 2” tube size: 50 OD x 44 ID x 263 L (mm) 3.1" tube size: 80 OD x 73 ID x 263 L (mm )  KF16 port is built-in the flange to connect a digital vacuum gauge 1/4: The gas inlet and needle valve is included for connecting the gas tank  YOu may need to order a vacuum valve (Pic. 1), the vacuum gauge (Pic. 2), bellow (Pic.3), and optional a mechanical vacuum pump (Piv. 5) or turbopump (Pic. 6) as below:  Pic. 1  Pic. 2  Pic. 3  Pic. 4Pic. 5
Temperature Controller	The digital temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port with software for PC operation

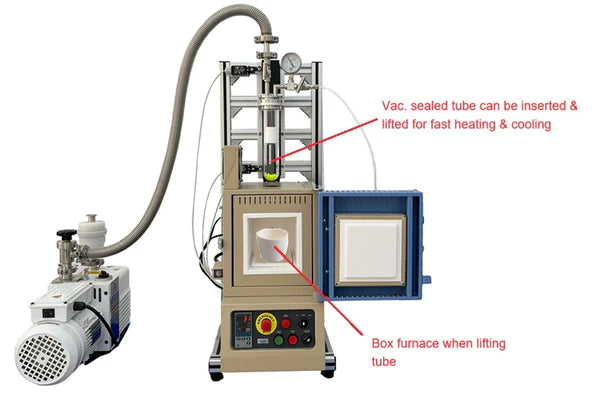

Moving Mechanism for RTP	The moving mechanism is installed on the back of the furnace to insert or lift the vacuum-sealed flange for fast heating or fast cooling. For fast heating: Preheating box furnace, then insert the quartz tube into the chamber （~ 1ºC/S） For fast cooling: Lift the heated tube to the outside heating chamber and blow cool air ( ~ 1ºC/S )
Net Weight & Dimension	~(70 lbs )
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
