MTI  |  SKU: MSK-131-AM16

Automatic Hot-Press w/ Battery Analyzers (16, 64 or 128 Channels) for Pouch Cell SEI Formation - MSK-131-AM

€0,00

Consegna e spedizione nell'UE

Nel preventivo aggiungeremo i costi di spedizione, assicurazione e sdoganamento.

Automatic Hot-Press w/ Battery Analyzers (16, 64 or 128 Channels) for Pouch Cell SEI Formation - MSK-131-AM

MTI

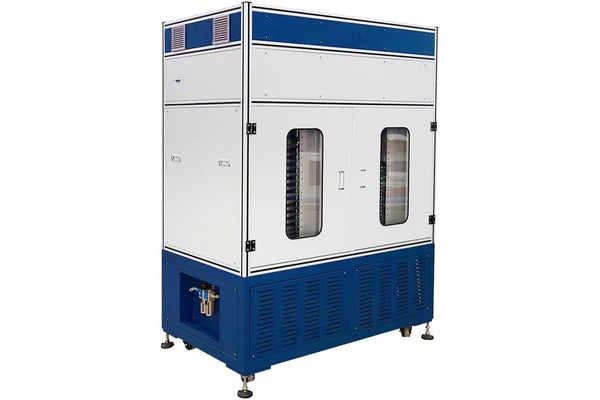

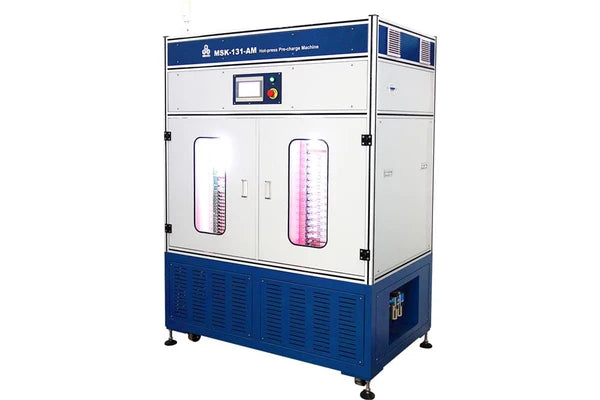

MSK-131-AM is a multiple-channel and 90°C maximum automatic hot press. It is designed to provide an even pressure load and temperature environment for the tested pouch battery to achieve a more efficient and high-quality SEI formation.
At the meanwhile, the pouch shaping can be optimized through this process. It is an ideal tool for the pouch cell production or pilot line.

SPECIFICATIONS:
Power Requirement
  • AC 220V, Three phases, 50/60 Hz
  • AC380V ±10%, Three Phases 50Hz/60Hz is available upon request.
  • Maximum power
    • 16 channels: 3 kW
    • 64 channels: 15 kW
    • 128 channels: 20 kW
Environment
  • Temperature: Room temperature; 25±3
  • Humidity: 30 ~ 90 RH Required
Channels

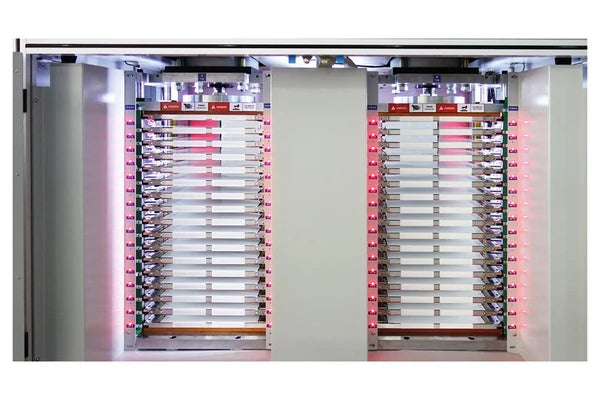

  • Optional at 16, 64, and 128 channels. Max. 128 Pouch cells can be tested via multilayer pressing (Pic. 1), but optional at 16 cells or 64 cells.
  • Pressing 4 pouch cells per layer using a silicone heating plate as the separator. ( Pic. 2)
  • The thickness of the single pouch cell is Max. 12 mm. Thicker cell may reduce the total amount of cells to test.
Pressure
  • Applied pressure: 500 ~ 3000 Kgf Adjustable
  • Accuracy: +/- 20 Kg; From top to bottom
  • 0.5 ~0.8 MPa air compressor is required for driving pressure (not included).
  • Please click picture left to order
Temperature
  • RT+10 ~ 90
  • Accuracy: +/- 4
  • Heating will be provided by multi-layer silicone flexible heating plates
  • Heating Rate: From RT to 80 in 10 minutes
  • Digital controlled by the control panel.
Hot Press Area
  • Maximum:
    • 16 channels: L 150 mm x W 120 mm x T 12 mm
    • 64 channels: L 150 mm x W 120 mm x T 12 mm
    • 128 channels: L 300 mm x W 130 mm x T 10 mm
  • Minimum:
    • 16 channels: L 62 mm x W 30 mm x T 2.5 mm
    • 64 channels: L 50 mm x W 30 mm x T 2.5 mm
    • 128 channels: L 50 mm x W 30 mm x T 2.5 mm
  • The hot press area could be customized as the customer request at the extra cost

Battery Analyzer

 Battery analyzers are included for cycling with optional 16, 64, and 128 channels.Each channel: 5VDC, 6A current for
  • Constant Current Charging
  • Constant Voltage Charging
  • Constant Current Discharging

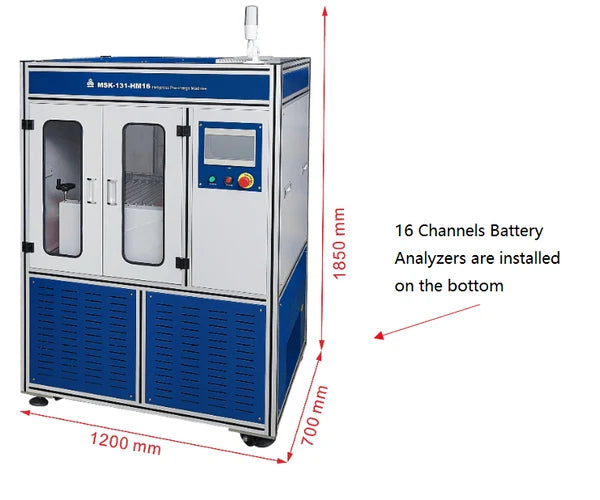

One Laptop computer is included for recording all data and analyzing battery capacity and cycle life.Click Picture left for the detailed specification of the battery analyzer. If 16 and 64 channels and the battery analyzer may put inside the pressing unit, but if 128 channels, the analyzers will be located outside the pressing unit.One laptop computer is included for controlling battery charging and discharging.
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
