Macchina formatrice automatica di sacchetti R2R per la produzione di sacchetti in scala pilota - MSK-120A

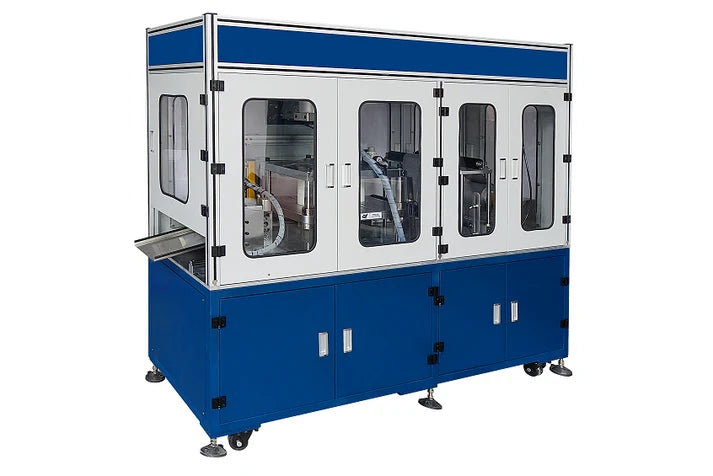

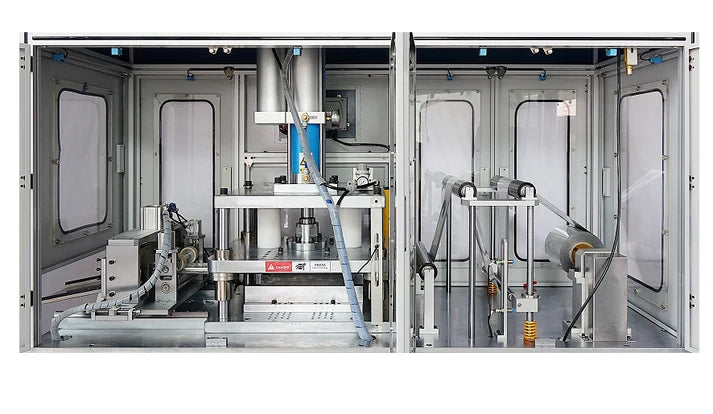

MSK-120A is an automatic roll to roll case/cup forming machine for pouch cell production. It is capable of automatic, high-speed preparation of polymer cases made of aluminum laminated films. Its high productivity makes it an ideal tool for the pouch cell pilot line.

SPECIFICATIONS:

Features	Automatic, high-speed operation for maximum productivity Touch screen control of forming/punching process: punching depth, maintain time, delay time Automatic roll feeding and adjustable cutting length Integrated IR sensors for safe operations
Input Film Size	Maximum film width: 250 mm Maximum diameter of the film roll: 300 mm
Die Set	Customized die is available upon request Max die dimension: 400 mm L x 400 mm W The die set is not included with the tool! Please provide your desired size of the customization die when RFQ
Forming Speed	200 - 400 pcs / hour
Working Voltage	AC 220 V 50/60 Hz, single phase
Max. Power Consumption	1 kW
Air Pressure Requirement	0.5 - 0.8 MPa 11 L consumption of compressed air per punch Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Punching Precision	± 0.2 mm
Punching Depth	Max 6 mm
Punching Pressure	Max 10 metric ton
Al Laminated Film	Film thickness: 0.10 - 0.20 mm acceptable Al laminated film is available upon request
Operation Manual & Video	Video and Manual Coming Soon
