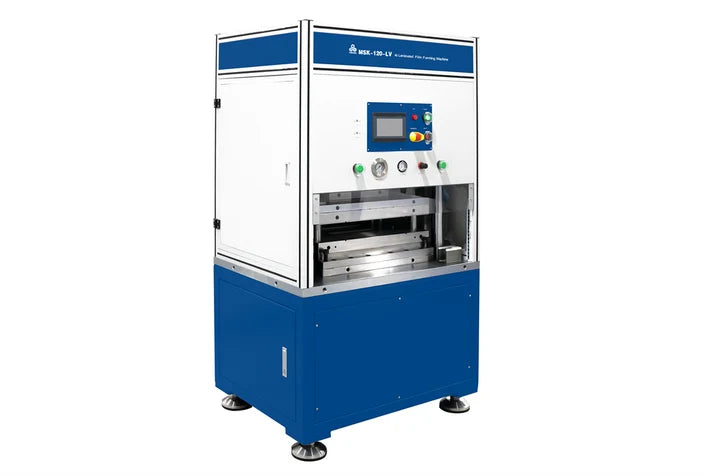

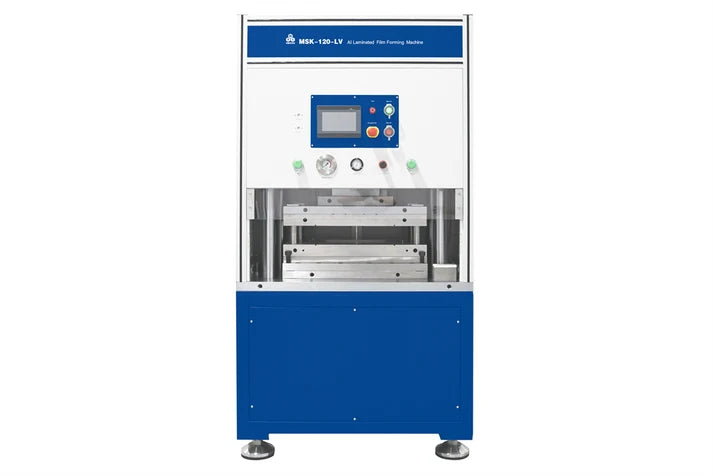

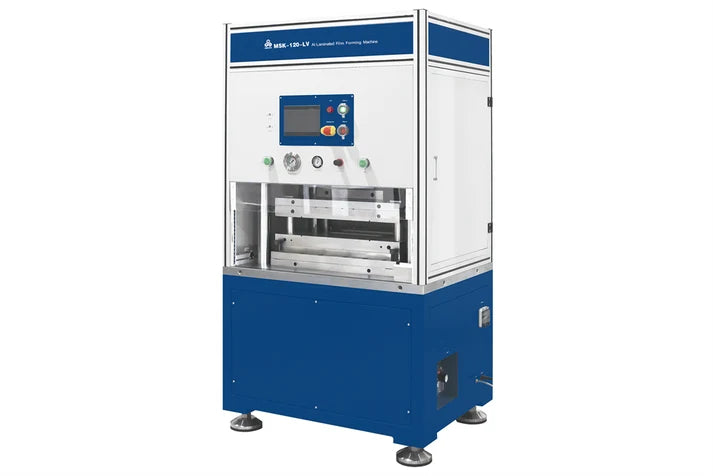

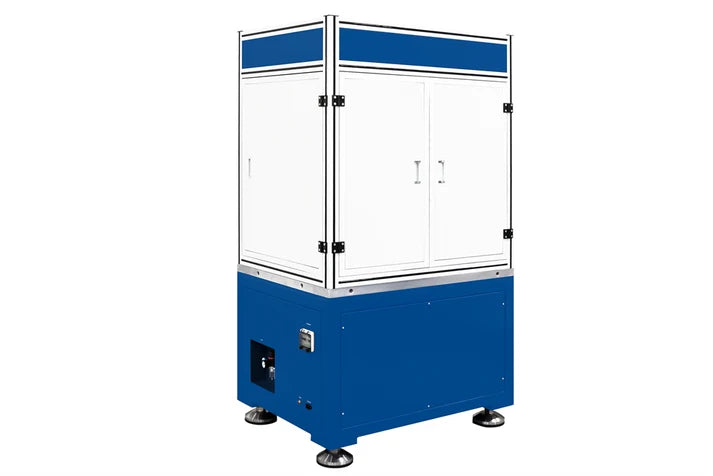

Macchina formatrice di astucci con regolazione automatica della profondità (max. L380 * L310 mm) - MSK-120-LV

MSK-120-LV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.
The maximum pouch cell can be punched is L380 * W310 mm (no airbag mode)

Features	Gas/Electrical driven. The pouch cell forming depth, punching pressure, and speed are programmable Case forming die set with high strength and precision. Display for case forming time PLC Control
Voltage and Power	AC 220V±10%, 50/60 Hz, single phase (AC110V is available upon request) Maximum power: 1500 W
Customized Die Size	Customer can choose the punching die size within the following types:  Dual Concaves, Folded (with airbag): Max. L190*W250mm (punching airbag width: 50 mm). Single Concave, Folded (with airbag): Max. L205*W250mm (punching airbag width: 50 mm). Single Concave, Four-side sealing (with airbag): Max. L380*W250mm (punching airbag width: 50 mm). Single Concave, Four-side sealing (no airbag): Max. L380*W310mm
Air Pressure Requirement	0.5 - 0.8 MPa Air or inert gas Air Compressor is not included. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Max. Cup Depth	Maximum 6.0 mm Precision: ± 0.05 mm Punching distance: 90 mm.
Max. Punching Pressure	3T for case forming with servo motor; Case pressing force is up to 30 T (adjustable with pneumatic cylinder)
Production Efficiency	~150-200 pcs/h
Al Laminated Film	The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning	The tolerance of precision die is very little; Misalignment will result in die damage.  Following the operation manual when installing the die. MTI is not responsible for the damage caused by desperation.
