RackMount 16CH
PalmSens
16-channel potentiostat / galvanostat / EIS analyzer

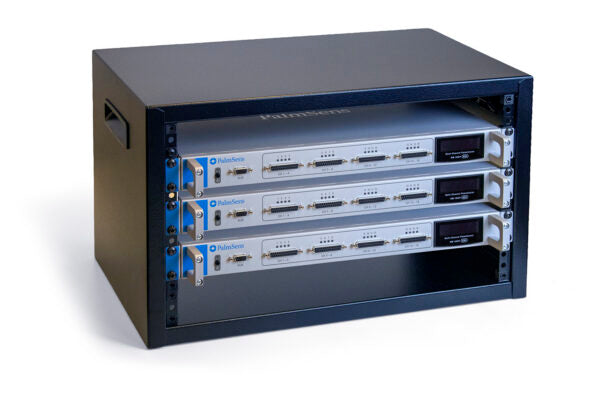

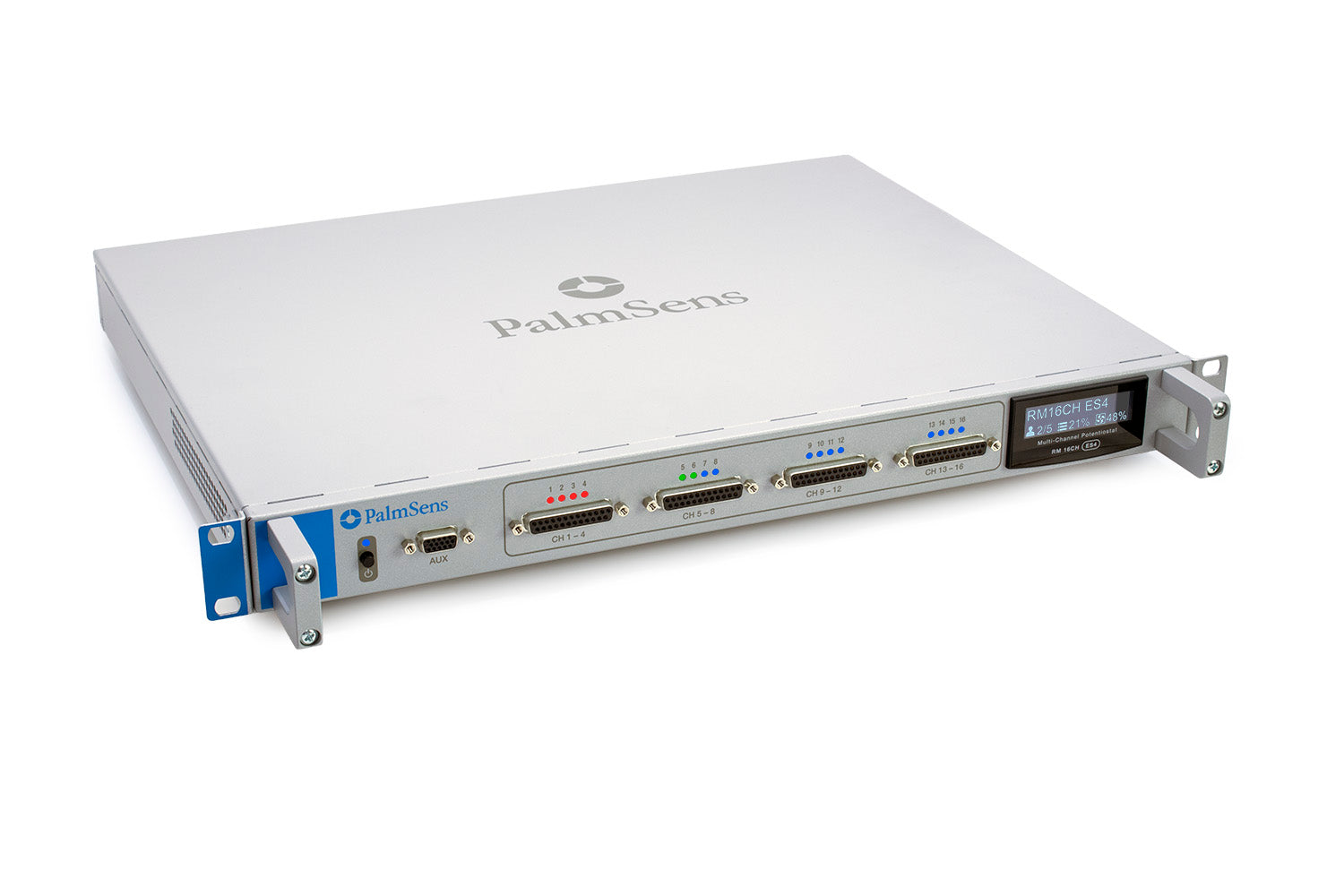

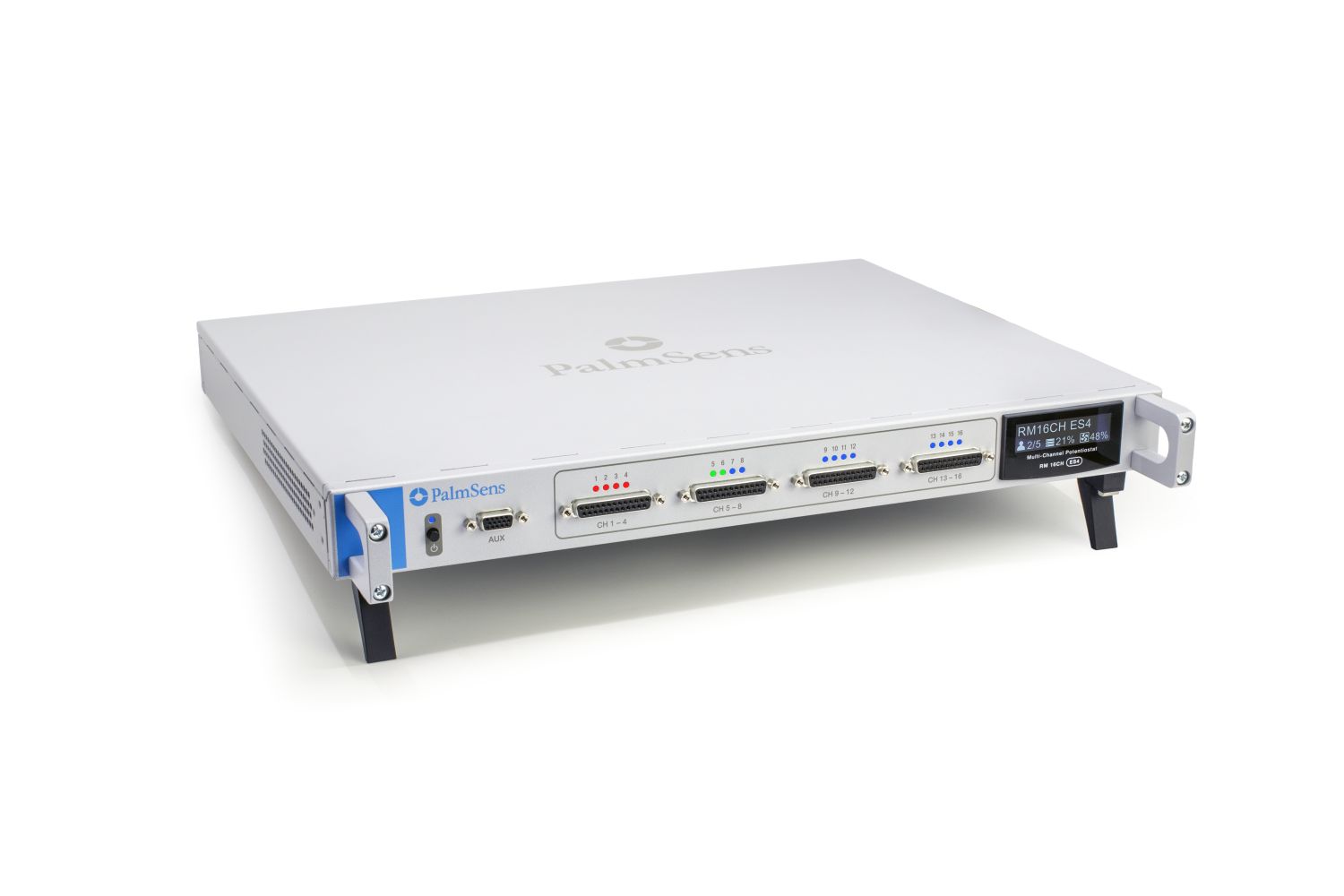

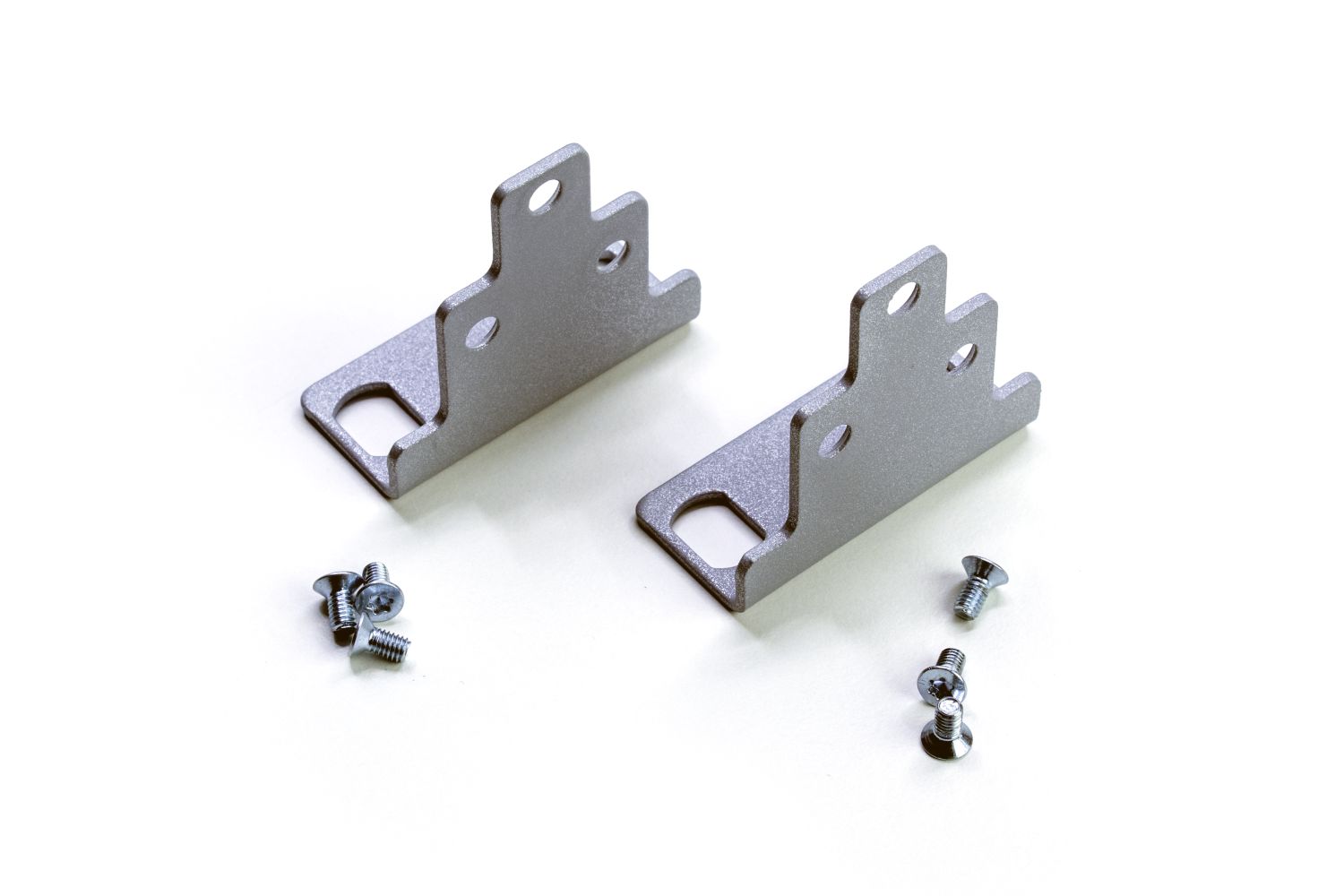

- Desktop or 19 inch rack-ready housing
- Embedded Lablink Hub
- FRA / EIS: 10 µHz up to 200 kHz
- Potential range: ±3 V
- Max. current: ±30 mA
High-Throughput Networked Electrochemical Analyzer
The RackMount 16CH is a high-performance 16-channel potentiostat built on the industry-proven EmStat4 LR platform. Engineered for high-throughput electrochemical research, it delivers precise, simultaneous measurements across all channels without compromise. Equipped with an embedded Lablink controller, the RackMount 16CH manages, buffers, and Connect electrochemical cells or disposable electrodes
16 independent channels
Each quad-cell connector interfaces with four independent electrochemical cells. Every channel features its own dedicated potentiostat with discrete Reference Electrode, Working Electrode, Counter Electrode, and ground connections for total isolation and control. Galvanic Isolation across the channels and hardware synchronization allow for using multiple Working Electrodes in the same Sharing, buffering and storage

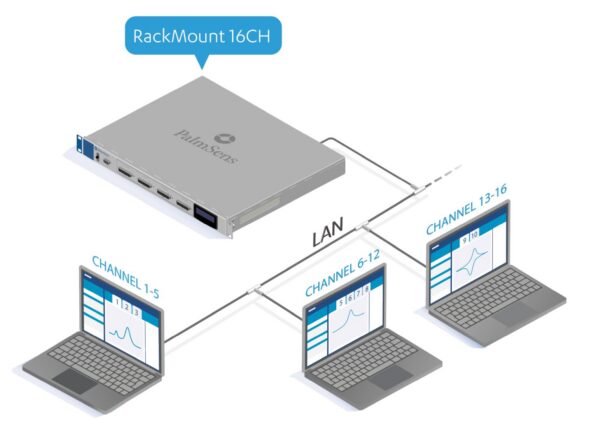

Embedded Lablink controller
The RackMount 16CH, powered by Lablink, controls your measurements internally and logs them directly to its onboard Solid State Drive (SSD).
- Independent Operation: Experiments run flawlessly without a PC connection.
- Internal Logging: Data is saved locally, eliminating the risk from software interruptions.
- Seamless Recovery: Simply reconnect
Status indicators and display
Each channel of the RackMount 16CH has a status indicator LED, showing if channels are available or claimed by users or if a measurement is running. The RackMount 16CH display shows Lablink-related status information and the fan speed.

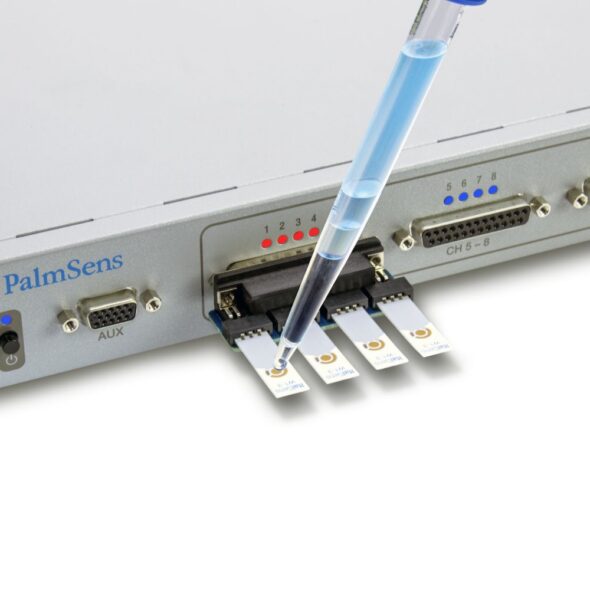

Automatic droplet detection
Optimized for Screen-Printed Electrodes (SPEs), each channel can be configured via software to trigger measurements automatically upon droplet detection. This minimizes the delay between
sample deposition and data acquisition, ensuring you capture the most time-sensitive electrochemical responses. It can also help streamline high-Efficient wiring

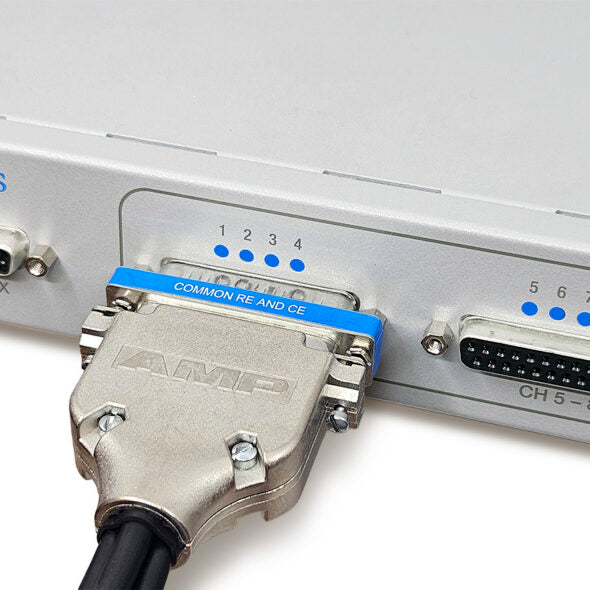

Adapter with shared Reference and Counter electrodes
Every RackMount 16CH includes four cell-connector adapters as standard. These DB25 interfaces internally bridge the Reference (RE) and Counter (CE) electrodes for each four-channel bank, eliminating the need to manually stack leads at the cell.
Voltammetric techniques
- Linear Sweep Voltammetry (LSV)
- Cyclic Voltammetry (CV)
- Fast Cyclic Voltammetry (FCV)
- AC Voltammetry (ACV)
Potentiometric techniques
- Linear Sweep Potentiometry (LSP)
- Chronopotentiometry (CP)
- MultiStep Potentiometry (MSP)
- Open Circuit Potentiometry (OCP)
Pulsed techniques
- Differential Pulse Voltammetry (DPV)
- Square Wave Voltammetry (SWV)
- Normal Pulse Voltammetry (NPV)
Impedimetric techniques
- Potentiostatic Electrochemical Impedance Spectroscopy (PEIS)
- Galvanostatic Electrochemical Impedance Spectroscopy (GEIS)
Amperometric techniques
- Chronoamperometry (CA)
- Zero Resistance Amperometry (ZRA)
- Chronocoulometry (CC)
- MultiStep Amperometry (MA)
- Fast Amperometry (FAM)
- Pulsed Amperometric Detection (PAD)
Other
- Mixed Mode (MM)
- Custom techniques (MethodSCRIPT)
Specifications
|
General
|
|
|
dc-potential range
|
|
|
compliance voltage
|
|
| maximum current | ±30 mA |
|
max. data acquisition rate
|
|
| Potentiostat | |
| applied potential resolution | 100 µV |
|
applied potential accuracy
|
|
|
current ranges
|
|
| 8 ranges | |
|
measured current resolution
|
|
| CR
|
|
|
|
|
| measured
|
|
| current accuracy
|
±20 pA ±0.2% of range |
|
bandwidth settings
|
320 Hz, 3.2 kHz, 30 kHz or 570 kHz |
| Galvanostat | |
|
current ranges
|
|
| 4 ranges | |
| applied dc-current | ±3 *
|
| CR
|
|
|
|
|
| applied dc-current resolution | 0.01% of CR |
| applied dc-
|
|
| current accuracy
|
±20 pA ±0.2% of range |
| potential ranges | 50 mV, 100 mV, 200 mV, 500 mV, 1 V |
| measured dc-potential resolution | 96 µV at ±3 V (1 V range) |
| 48 µV at ±1.5 V (500 mV) | |
| 19.2 µV at ±0.6 V (200 mV) | |
| 9.6 µV at ±0.3 V (100 mV) | |
| 4.8 µV at ±0.150 V (50 mV) | |
| measured dc-potential accuracy | ≤ 0.2% ±1 mV offset |
|
bandwidth settings
|
320 Hz, 3.2 kHz, 30 kHz or 570 kHz |
| FRA / EIS | |
| frequency range | 10 µHz to 200 kHz |
| ac-amplitude range | 1 mV to 900 mV rms, or 2.5 V p-p |
| GEIS | |
| frequency range | 10 µHz to 100 kHz |
| ac-amplitude range | 0.9 *CR (Amps) |
| Electrometer | |
|
electrometer amplifier input
|
|
|
bandwidth
|
|
| 500 kHz for EIS and fast CA/CP | |
| Other | |

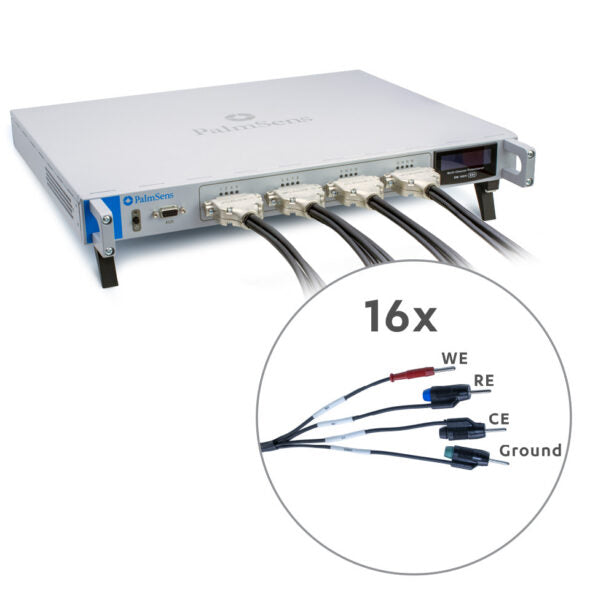

| electrode connections | 16 x [ WE, RE, CE, and ground, with 2 mm banana plugs ] |
| housing | Steel 19” housing: |
| 44.4 x 33.5 x 4.4 cm (without front handles and feet) | |
| extra height with feet: 1.5 cm | |
| extra depth with handles: 4.0 cm | |
| weight | 4.5 kg |
| communication | ethernet, I2C for peripheral control |
| Power | 100-240 V, 90 W, 50-60 Hz |
| internal storage space | 500 MB, equivalent to > 15M datapoints or ~1000 measurement files per channel |
| plus 512 GB SSD via internal Lablink module for entire instrument | |
Connector options
We offer flexibility with a variety of connection options
There are four sensor connection options available, each supporting connection to four channels. When you add the RackMount16 to your basket, four units of your selected connection option will be included, providing connectivity for all 16 channels of the RackMount 16CH
Option B: High-density cable that terminates in ferrules.
Option C: Connection (Screw) Terminal to assemble your own wires.
