670 electrolysis workstation
Scribner

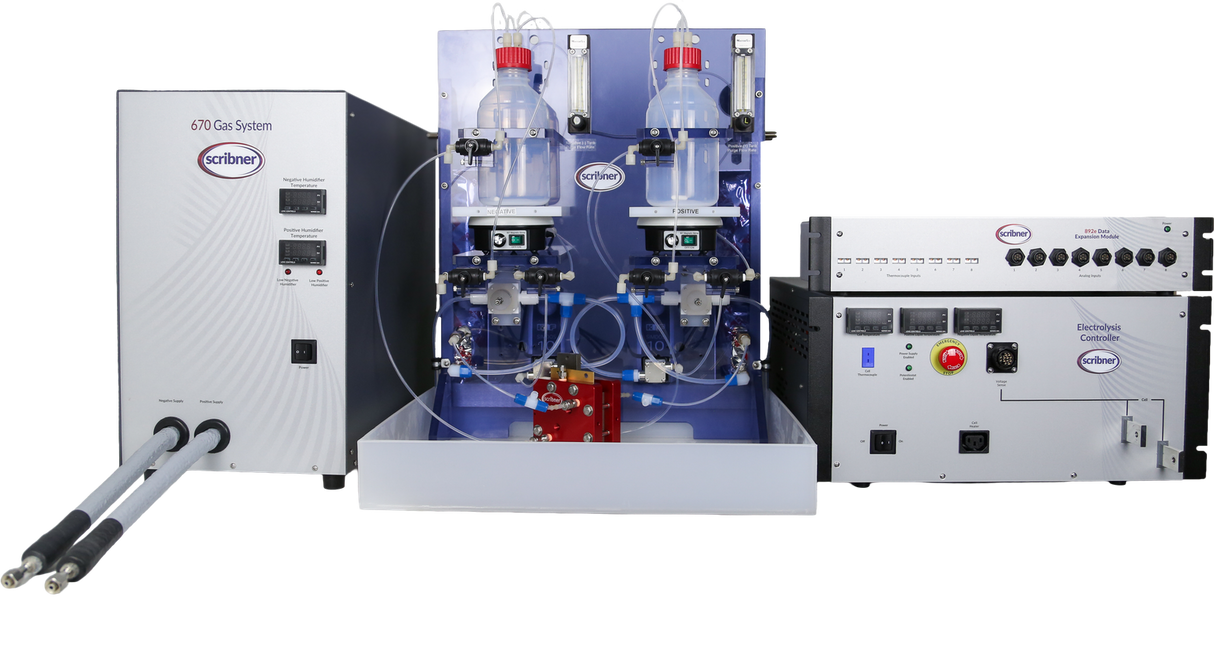

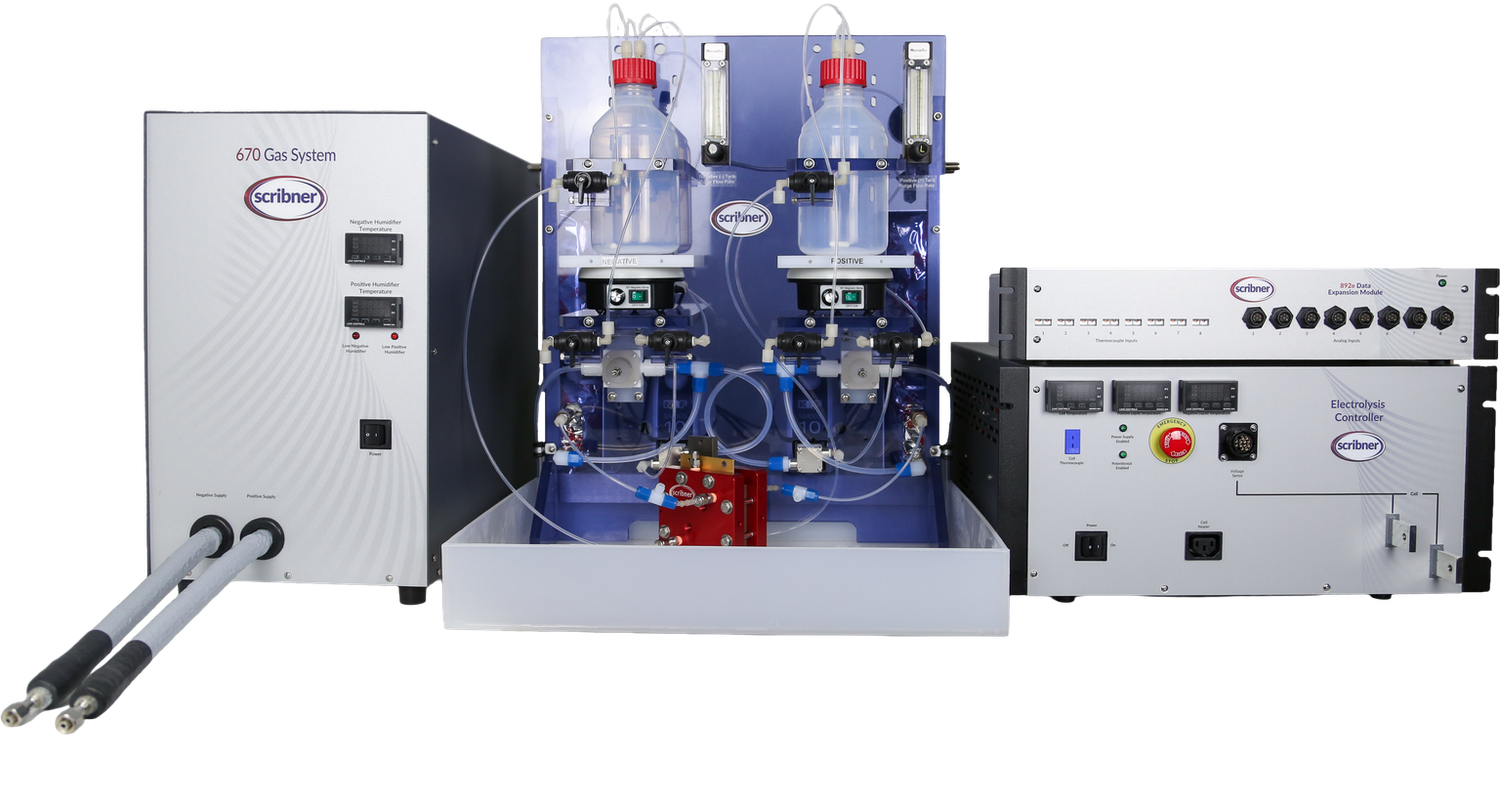

The 670 Electrolysis Workstation is a turnkey, fully integrated platform purpose-built for advanced electrolysis research.
Whether you’re a university research lab, a startup developing next-generation electrolyzers, or an industrial R&D group scaling electrochemical processes, the 670 delivers exceptional control, flexibility, and measurement accuracy.
Designed to support both liquid and gas-phase operation at one or both electrodes, the 670 enables precise investigation across a wide range of electrolysis conditions. From CO₂ reduction and ammonia synthesis to power-to-fuels, syngas production, and electrochemical separations, the system provides reliable performance for modern electrochemical research. With integrated high-current potentiostatic/galvanostatic control (±20 A), electrochemical impedance spectroscopy (EIS), and coordinated control of reactant flow and temperature, the 670 allows you to focus on reaction insights, not system complexity.
Configure the System for Your Research
The 670 platform is built with flexibility in mind, allowing the system to be configured to match your specific experimental setup. A range of system options and accessories makes it possible to adapt the workstation to different cell configurations, operating conditions, and research goals. As your work evolves, the modular design allows the system to grow with your research, supporting new experiments and expanded capabilities over time.
- Power Supply Max Current – 100 A
- Voltage Range – 0 – 5.000 V
- Maximum Power – 500W
- Potentiostat Current Ranges – ±20 / 7 / 0.7 / 0.07 A
- Current Resolution – 0.007% of range
- Current Limit of Error – ±1.0% of range
- Set & Read Voltage – > ±5.000 V
- Cell Voltage Sense Lead – Differential
- Voltage Measurement Resolution – 152 μV
- Sense Lead Input Resistance – 1.0 GΩ
- Modes of Operation – Constant, Scan, Step-Stair (Voltage & Current)
- Impedance Frequency Range – 1 mHz – 10 kHz (Power Supply); 1 mHz – 40 kHz (Potentiostat)
- Impedance Measurement Types – Sweep EIS and Single-Freq HFR; Real-Time Measurement; Whole Cell and Aux / Half / Reference
- Wetted Parts– Standard PFA & Ni200
- Chemical Compatibility – Weak acids (pH ~2 NaCl) to strong bases (~10 M NaOH, KOH)
- Feed Stock Reservoir – 2 × PFA, Removable
- Feed Stock Reservoir Sizes – 250 mL, 500 mL, or 1 L
- Feed Stock Agitation – 2 × Stir Plates
- Feed Stock Supply Pump – 1 – 100 mL/min
- Flow Path – Independent Anode & Cathode
- Back Pressure Rating – 1.5 barg (22 psig)
- Purge Gas – 2 × N₂ rotameters (manual)
- Cell Temperature Range – Ambient – 120 °C
- Cell Connection – 4-Terminal (I+, I–, V+, V–) & Differential Aux (REF)
- Custom Heat Exchanger Materials – Ni200, C22, Ti, or 316 SS
- Additional Data Acquisition – 6 thermocouples and 8 analog inputs
- Wetted Materials – All 316SS
- Fittings – Swagelok® fittings and heated lines
- Mass Flow Control – Software controlled Anode & Cathode
- Purge Control – Automatic N₂ for Anode & Cathode
- Humidifiers – Dual sparger-type, passivated 316SS, 360 W heaters per bottle, automatic drain / fill
- Humidification Flow Rate – Up to 5 SLPM
- Temperature Control – (2) Anode humidifier, Cathode humidifier
- Temperature Range – Ambient to 99.0ºC; Optional: 120ºC
- Temp Measurement Accuracy – ±0.25% of span, ±1 least significant digit
- Operating Temperature – 5-35º C
- Power Source – 100-120 or 220-240 VAC 50/60 Hz
- Size (excluding tubing connections) – 50 cm x 65 cm x 65 cm (20 x 25 x 25 in)
-
Weight (empty) – 16 kg (35 lbs)
- Robust – Embedded Firmware Level Decisions
- Fail Safe Design – De-Energize On Alarm Condition
- Continuous Monitoring – E-Stop, Voltage, Current, Temperate, Gas, Contamination & External Signals
- External Alarm – Integrate Full Building E-Stop
- Software Alarm – User Configurable Limits
Included with every Scribner is a set of parts and tools for installing the instrument. Specifically, each 670 includes;
-
Tools
- 2 wrenches, 1/2″ & 9/16″, for common fittings
-
Document Folder
- USB drive with documentation and software
- Calibration information
- Pump user manual
-
Cabling
- 9-Pin connector connecting 892 to Controller
- Country specific power cords bringing wall power to each unit x3
- USB cable connecting Controller to Computer
- External alarm cable for integrating additional alarm signals into Controller
- Flow bench controller ribbon cable
- Controller cell cable
-
Components
- Stir bars x2
- PFA coated thermocouples x2
-
Extra Parts
- 7 Type T Thermocouple connectors for adding thermocouples to 892 and cell
- 6 Analog circular connectors for adding sensors to 892
- Cell heater adapter for using other commercial heaters through Controller
- Swagelok nuts and ferrules for gas ports x3
- Alligator clips x6
- ¼” nuts, bolts, and washers for bus bars x2
-
Document Folder
- USB drive with documentation and software
- Calibration information
-
Cabling
- 9-Pin connector connecting 892 to Controller
- Gas auxiliary signal cable from Flow Bench to 670 Gas System
- Country specific power cord bringing wall power to the gas system
-
Extra Parts
- Swagelok nuts & ferrules
- Heated cuffs
